HH58 Series 7.5 kVDC Ceramic Capacitors - High Capacitance Parts
HH58 Series 7.5 kVDC Ceramic Capacitors - High Capacitance Parts
SKU:CER-610adf
Compact HH58 Series 7.5 kVDC Ceramic Capacitors with high capacitance and robust performance. Ideal for institutional requirements.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HH58 Series 7.5 kVDC Ceramic Capacitors - High Capacitance Parts
$29.99
Quantity: 1
Claim Your Seller Account
HH58 Series 7.5 kVDC Ceramic Capacitors - High Capacitance Parts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

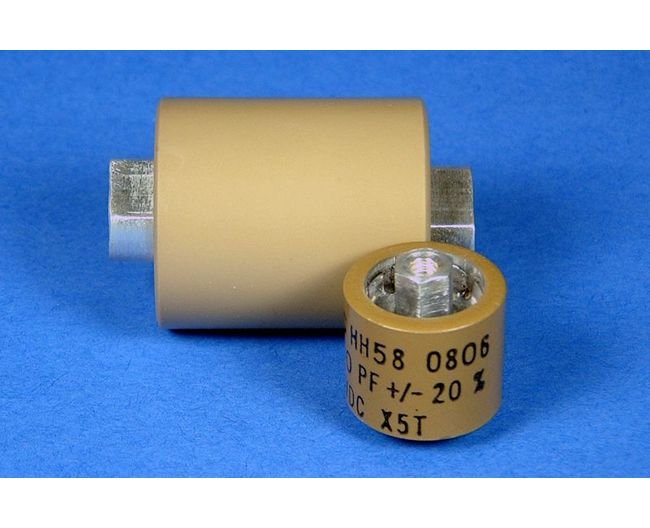

The HH58 Series Ceramic Capacitors offer a compact design with high capacitance suitable for both consumer and institutional applications. With 7.5 kVDC power ratings, these capacitors come in a broadcast barrel package, featuring metric or English terminals and three Class II dielectrics. They provide a capacitance of 500 pF and a VMAX (DC) of 7.5 kV, with excellent performance across a wide operating temperature range of -55 to +85 ºC. Additionally, these capacitors meet stringent standards for insulation resistance, capacitance tolerance, and dielectric strength, making them ideal for demanding institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
500 pF
Specifications Capacitance Tolerance
±10% | ±20% Standard
Specifications Dielectric Characteristic
+22%, -33% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5T
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC

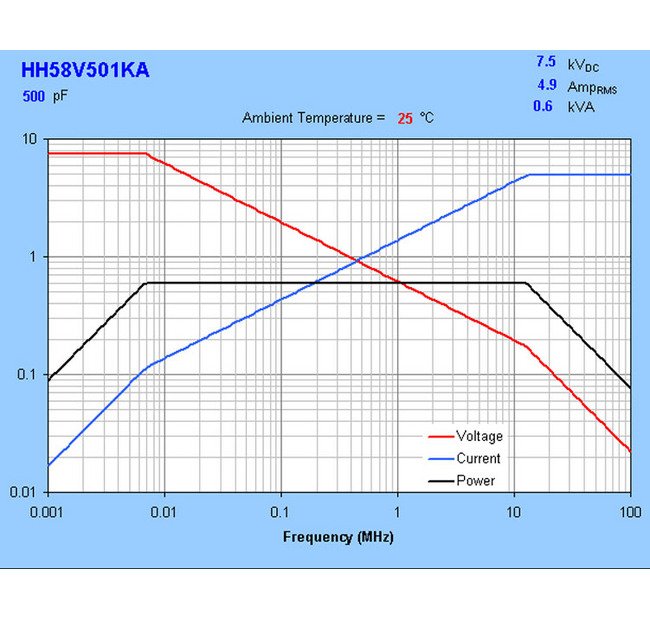

Specifications Fh
12.7 MHz
Specifications Fl
0.00679 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
4.90 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
0.6 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 6 inch-pounds or less (with standard terminal)Maximum applied torque to be 17 inch-pounds or less (with solid terminal)

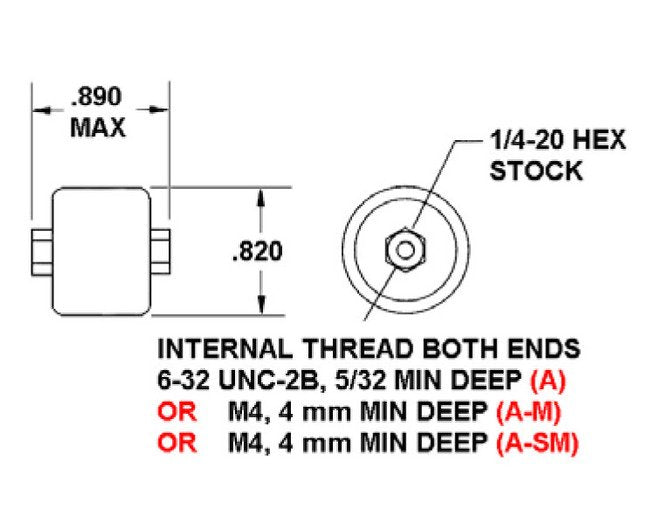

Specifications Thread
6-32
Specifications Vmax Dc
7.5 kV
