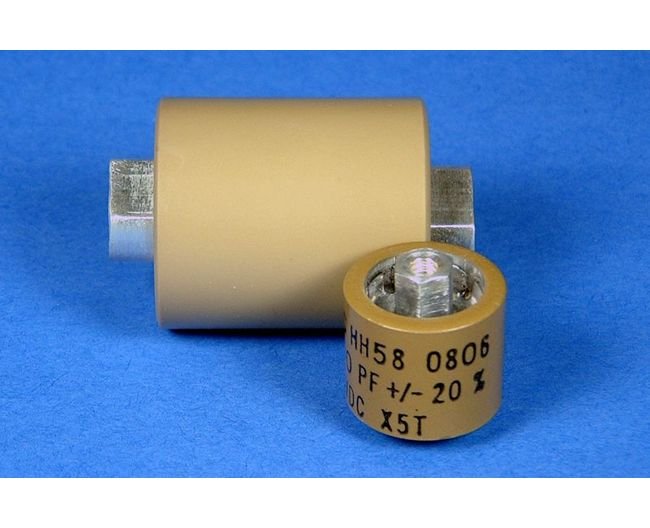

The HH58 Series Ceramic Capacitors are designed for compact yet high-capacitance applications, featuring 7.5 kVDC power ratings. These capacitors come in Broadcast Barrel Package with Metric or English Terminals options and offer three Class II Dielectrics for reliable performance. With a capacitance of 900 pF and a ±10% capacitance tolerance, these capacitors ensure precise electrical specifications. They operate effectively in a temperature range of -55 to +85 ºC and provide a high dielectric strength, making them suitable for demanding industrial and institutional environments.
Product Specifications
Specifications Cap
900 pF
Specifications Capacitance Tolerance
±10% | ±20% Standard
Specifications Dielectric Characteristic
+22%, -33% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5T
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC
Specifications Fh
8.27 MHz
Specifications Fl
0.00377 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
5.30 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
0.6 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 6 inch-pounds or less (with standard terminal)Maximum applied torque to be 17 inch-pounds or less (with solid terminal)

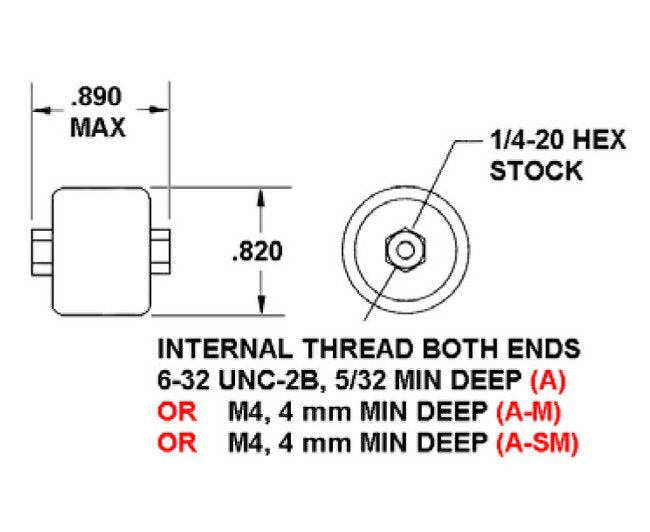

Specifications Thread
6-32
Specifications Vmax Dc
7.5 kV
