HH58 Series 7.5 kVDC High Capacitance Ceramic Capacitors
HH58 Series 7.5 kVDC High Capacitance Ceramic Capacitors
SKU:CER-aeee8c
HH58 Series Ceramic Capacitors: High capacitance, reliable performance, suitable for industrial applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
HH58 Series 7.5 kVDC High Capacitance Ceramic Capacitors
$99.99
Quantity: 1
Claim Your Seller Account
HH58 Series 7.5 kVDC High Capacitance Ceramic Capacitors
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

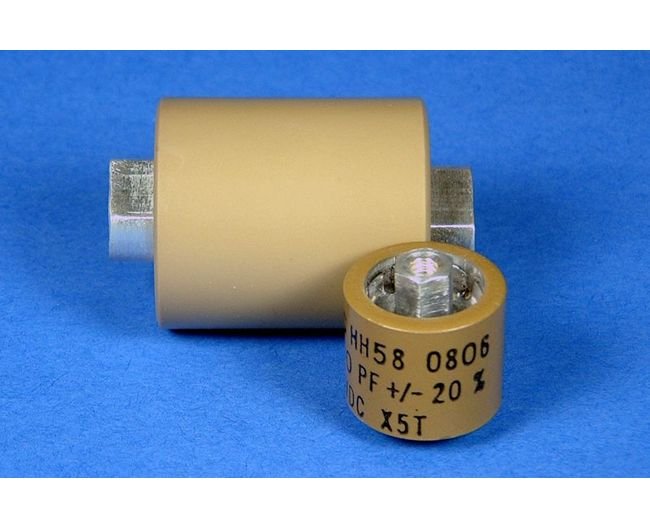

The HH58 Series Ceramic Capacitors are meticulously designed for compact size and high capacitance needs, with power ratings of 7.5 and 15 kVDC. Featuring a broadcast barrel package with a choice of metric or English terminals, these capacitors utilize three Class II dielectrics to ensure reliable performance. With a capacitance range of 500 to 2500 pF, operating temperature range from -55 to +85 ºC, and exceptional dissipation factor of 1.5% max, these capacitors offer superior efficiency and durability. The silver-plated terminals, humidity protection coating, and high insulation resistance make them ideal for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
500 to 2500 pF
Specifications Capacitance Tolerance
±10% | ±20% Standard
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC
Specifications Humidity Protection
Nonconductive Coating
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 6 inch-pounds or less (with standard terminal)Maximum applied torque to be 17 inch-pounds or less (with solid terminal)

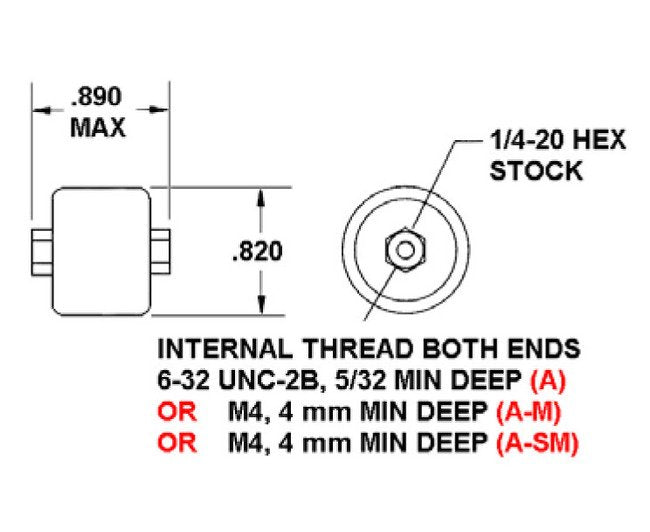

Specifications Thread
6-32 Terminal | M4 Terminal | Solid Metric
