HH58 Series 7.5kVDC Ceramic Capacitors
HH58 Series 7.5kVDC Ceramic Capacitors
SKU:CER-c1427b
Enhance your system performance with HH58 Series 7.5kVDC Ceramic Capacitors. High capacitance, durability, and precision engineering for critical applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HH58 Series 7.5kVDC Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HH58 Series 7.5kVDC Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

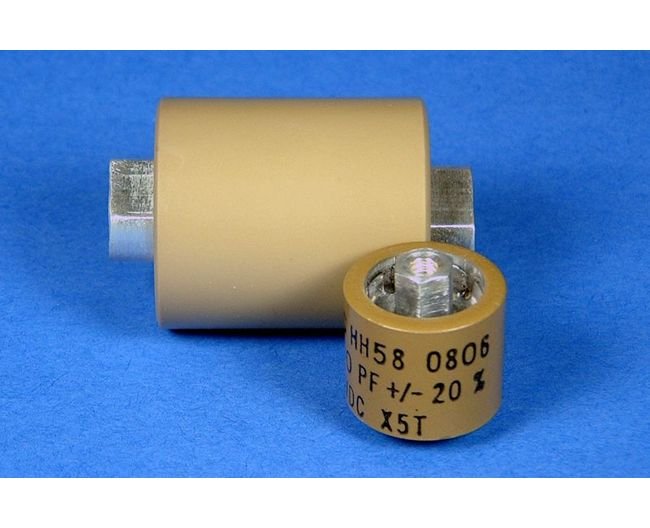

The HH58 Series Ceramic Capacitors are precision-engineered for versatile applications requiring high capacitance and durability. With a maximum DC voltage rating of 7.5 kV, these compact capacitors feature a broadcast barrel package with metric or English terminals. Designed with three Class II dielectrics for enhanced performance and reliability, these capacitors offer a capacitance of 2500 pF and meet stringent operational temperature ranges. Perfect for critical systems in industrial, aerospace, and defense sectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
2500 pF
Specifications Capacitance Tolerance
±10% | ±20% Standard
Specifications Dielectric Characteristic
+22%, -56% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5U
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC

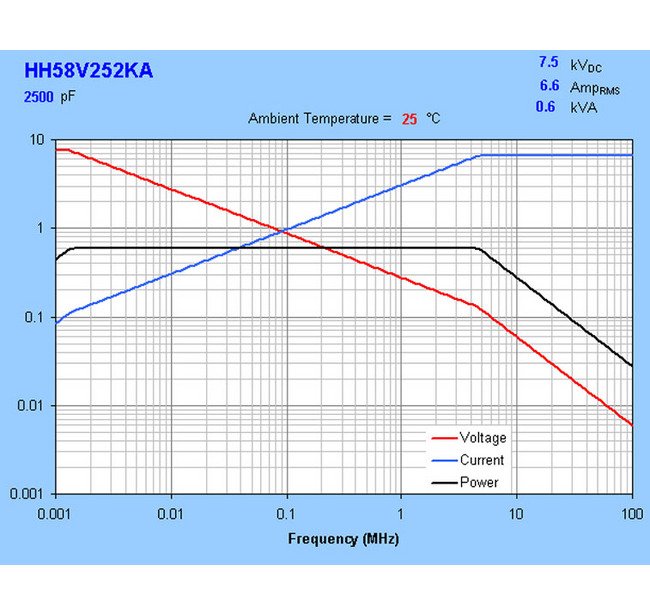

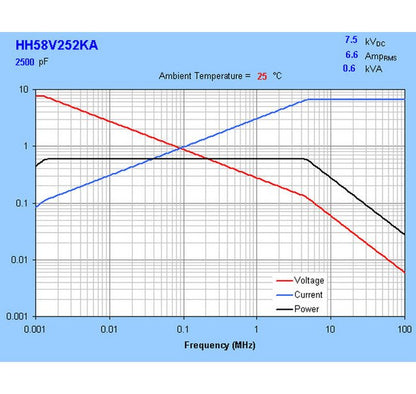

Specifications Fh
4.62 MHz
Specifications Fl
0.00136 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
6.60 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
0.6 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 6 inch-pounds or less (with standard terminal)Maximum applied torque to be 17 inch-pounds or less (with solid terminal)

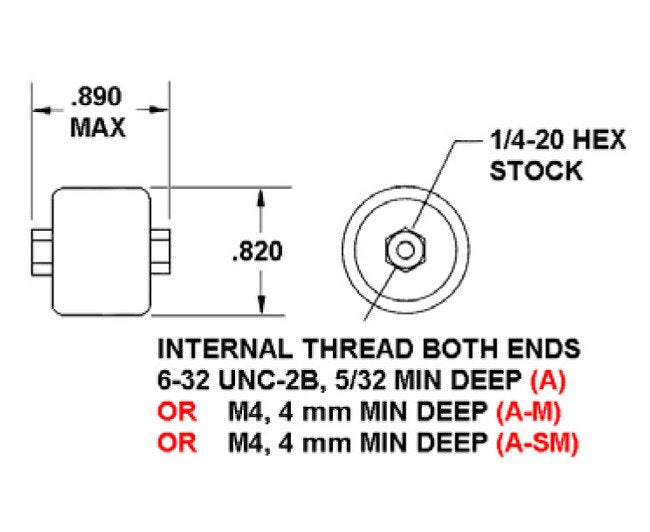

Specifications Thread
6-32
Specifications Vmax Dc
7.5 kV
