HH58 Series High Voltage Ceramic Capacitors
HH58 Series High Voltage Ceramic Capacitors
SKU:CER-41e2ba
Compact high-capacitance ceramic capacitors with 7.5 and 15 kVDC power ratings, ideal for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HH58 Series High Voltage Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
HH58 Series High Voltage Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

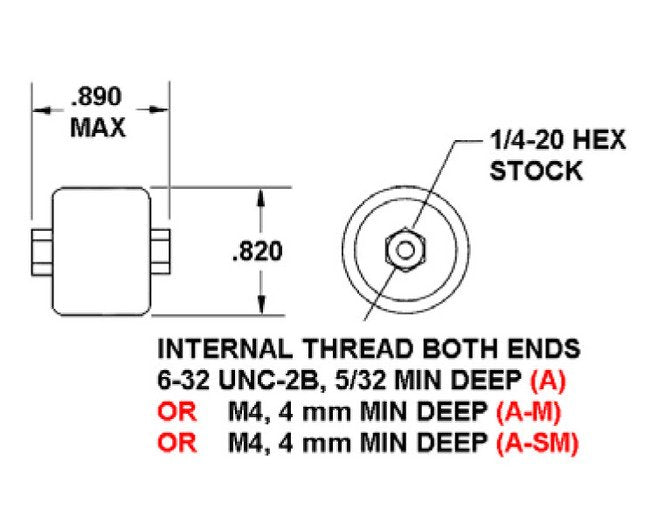

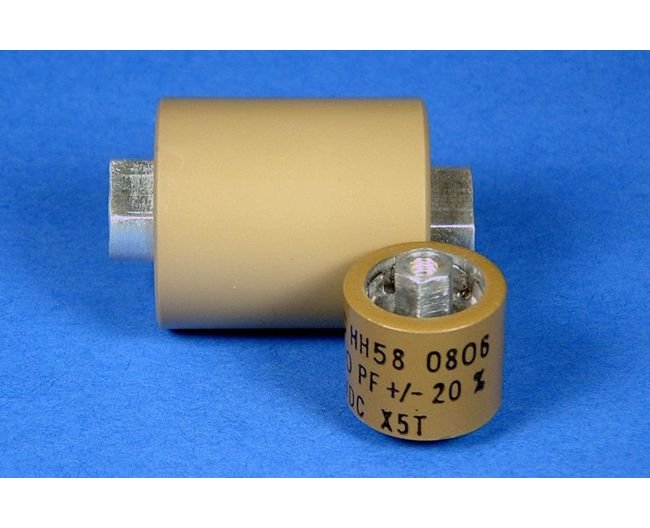

The HH58 Series Ceramic Capacitors are compact high-capacitance parts designed for 7.5 and 15 kVDC power ratings. Featuring a broadcast barrel package with metric or English terminals, these capacitors utilize three Class II dielectrics for reliable performance. With specifications including 2000 pF capacitance, X5V dielectric, and a wide operating temperature range of -55 to +85 ºC, these capacitors offer exceptional quality and durability for various applications.
Product Specifications
Specifications Cap
2000 pF
Specifications Capacitance Tolerance
±10% | ±20% Standard
Specifications Dielectric Characteristic
+22%, -82% capacitance change with temperature over -55ºC to +85ºC
Specifications Dielectric Strength
Will withstand an AC potential of 1.5 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Dielectric Tc
X5V
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC
Specifications Fh
5.26 MHz
Specifications Fl
0.00170 MHz
Specifications Humidity Protection
Nonconductive Coating
Specifications Imax Rms
6.30 A
Specifications Minimum Insulation Resistance At 100 Vdc
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
0.6 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC
Specifications Terminal
Silver Plated
Specifications Terminal Strength
Maximum applied torque to be 6 inch-pounds or less (with standard terminal)Maximum applied torque to be 17 inch-pounds or less (with solid terminal)
Specifications Thread
6-32
Specifications Vmax Dc
7.5 kV
