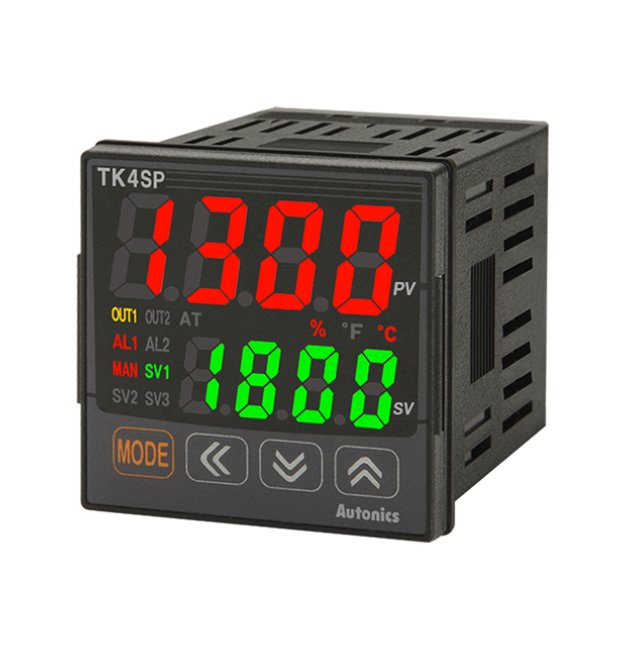

High Accuracy 100-240V AC Voltage Temperature Controller
High Accuracy 100-240V AC Voltage Temperature Controller
SKU:PRO-d26514
Top-of-the-line temperature controller for precise regulation in diverse environments.
Regular price
$111.95
Regular price
Sale price
$111.95
Unit price
per
Initiate Order
High Accuracy 100-240V AC Voltage Temperature Controller
$111.95
Quantity: 1
Claim Your Seller Account
High Accuracy 100-240V AC Voltage Temperature Controller
$111.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Accuracy 100-240V AC Voltage Temperature Controller by Autonics USA is a top-of-the-line solution for precise temperature regulation. With a wide AC voltage range, multiple control methods, and fast 50ms sampling cycle, this controller ensures accurate and stable temperature control in diverse environments. It features SSRP Voltage Output, dual insulation for safety, and approval from UL, CE, and more. The 4-digit LED display, versatile input specifications, and adjustable settings cater to various industrial needs, making it ideal for government facilities, laboratories, and commercial settings.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Display Accuracy
At room temperature(23ºC±5ºC): ±0.3% F.S. ±1-digitOut of range of room temperature: ±0.5ºC% F.S. ±1-digit
Specifications Analog Input Specification
0 to 100mV | 0 to 10V | 0 to 20mA | 0 to 5V | 1 to 5V | 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
SSRP Voltage Output
Specifications Control Output 1
SSR Drive (11VDC [ON/OFF, Phase, Cycle]
Specifications Ct Input Display Accuracy
±5% F.S. ±1-Digit
Specifications Derivative Time
0 to 9999 s
Specifications Dimensions
48 x 48 mm (11pin plug type)
Specifications Display Accuracy Resistance Temperature Detector
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature range:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit , In case of TK4SP Series, ±1ºC will be added.
Specifications Display Accuracy Thermocouple
At room temperature(23ºC±5ºC):(PV ±0.3% or ±1ºC, select the higher one) ±1-digitOut of room temperature range:(PV ±0.5% or ±2ºC, select the higher one) ±1-digit, In case of TK4SP Series, ±1ºC will be added.
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hysteresis Adjustable Sensitivity
RTD/Thermocouples: 1 to 100ºC/ºF(0.1 to 100.0ºC/ºF) Variable Analog: 1 to 100-Digit
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 2kV)
Specifications Integral Time Range
0 to 9999 s
Specifications List Price
111.95 USD
Specifications Manual Reset
0.0 to 100.0%
Specifications Option Output
Alarm 1
Specifications Proportional Band
0.1 to 999.9ºC/ºF(0.1 to 999.9%)
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Relay Output Control Period
0.1 to 120.0 s
Specifications Resistance Temperature Detector Rtd Input Specifi
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nickel 120Ω
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
85 g
Specifications Ssr Output Control Period
1.0 to 120.0 s
Specifications Thermocouple Input Specification
B(PR) | C(TT) | E(CR) | G(TT) | J(IC) | K(CA) | L(IC) | N(NN) | Platinel II | R(PR) | S(PR) | T(CC) | U(CC)
Specifications Type
High Accuracy
Specifications Unit Weight
130 g
Specifications Weight
0.41 lb
