High-Accuracy Digital Humidity Sensor 5.3mm
High-Accuracy Digital Humidity Sensor 5.3mm
SKU:DIG-d0d03a
Accurate and reliable 5.3mm Height Digital Humidity Sensor with I²C interface for precise RH and temperature readings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Accuracy Digital Humidity Sensor 5.3mm
$49.99
Quantity: 1
Claim Your Seller Account
High-Accuracy Digital Humidity Sensor 5.3mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

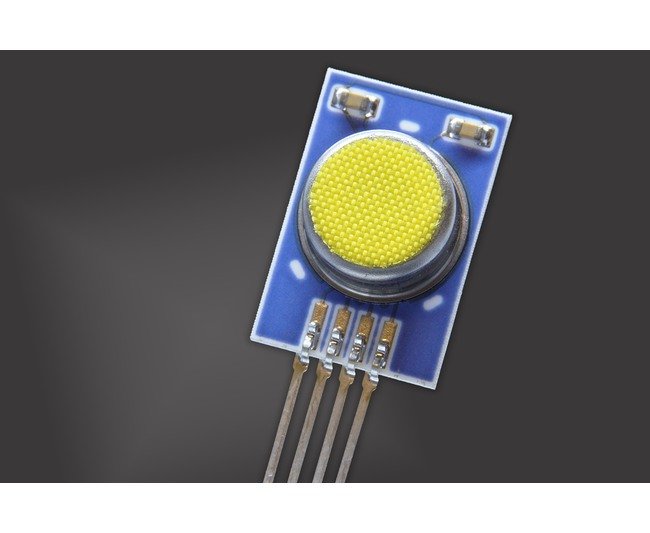

The 5.3mm Height Digital Humidity Sensor by Innovative Sensor Technology, USA Division, ensures precise humidity and temperature measurements with RoHS compliance. Operating in a wide range, -40 to +125 ºC, this sensor guarantees accuracy (±1.8% RH) and reliability. With an I²C digital interface and low power consumption, this sensor is ideal for various applications demanding superior performance.
Product Specifications
Accessories

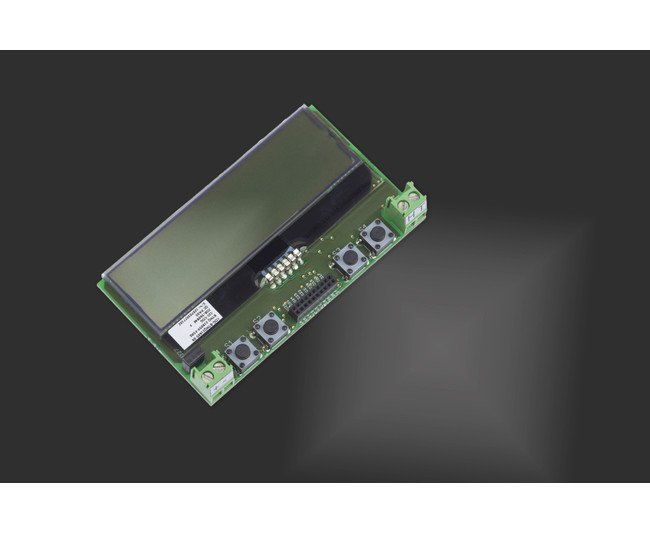

Item # - 105396Item Name - HYT Liquid Crystal Display (LCD) ModuleDescription - Optimal for evaluation and demonstration of the HYT modules.HYT LCD Module for the correction of humidity and temperature measurement values and a permanent storage of the correction valuesLength - 70 mmWidth - 40 mmHumidity Output Signal - 0 V to 10 V (0 % RH to 100 % RH)Temperature Output Signal: 0 V to 10 V (-40 to +125 ºC)Sampling Time: 1 sSupply Voltage: 3 V by internal CR2032 (battery not included) or 5 V by external supply, reverse polarity protected, automatic switchover.Current Consumption: < 4 mADisplay: Liquid Crystal Display (LCD) with 2 x 8 CharactersMaximum Load on the Outputs: 10 mA
Dimensions Height
5.3 mm
Dimensions Length
17.8 mm
Dimensions Width
10.2 mm
Specifications Current Consumption At 1 Hertz Hz Measuring Rate
< 22 µA
Specifications Current Consumption In Sleep Mode
< 1 µA
Specifications Digital Interface
Address 0 x 28 or Alternative Address | Inter-Integrated Circuit (I²C)
Specifications Humidity Accuracy
1.8 %
Specifications Manufacturer Part Number
HYT 221
Specifications Old Product Code
150.00068
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-40 to +125 ºC
Specifications Operating Voltage
2.7 to 5.5 V
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Accuracy
0.2 ºC
Specifications Wire Length
27 mm
Specifications Wire Type
SIL RM 1
