High-Capacity 240-Gallon Vacuum Receiver with 150 psi MAWP

Name: High-Capacity 240-Gallon Vacuum Receiver with 150 psi MAWP
Brand: Compressed Air Systems, Inc.
SKU: REC-b94d8e
Price: 1799.99 USD
Availability: OutOfStock

SKU:REC-b94d8e

Rugged 240-gal Vacuum Receiver, 150 psi, 29.9 inHg rating; optimal for industrial use.

$1,799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

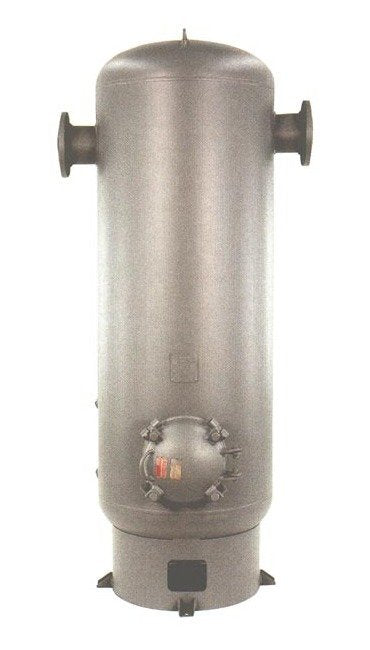

Meet demanding industrial vacuum needs with our 240-gallon vacuum receiver designed to operate at a maximum pressure of 150 psi. This robust tank offers a nominal capacity of 240 gallons, ensuring efficient storage and transfer capability. Crafted with precision to dimensions of 30 x 92 inches, with multiple NPT openings for versatility. Rated at 29.9 inHg vacuum, it guarantees superior performance and durability for varied applications.

Product Specifications

Financing Approve Payments

Finance with Approve Payments

Specifications Cross Reference

V10098

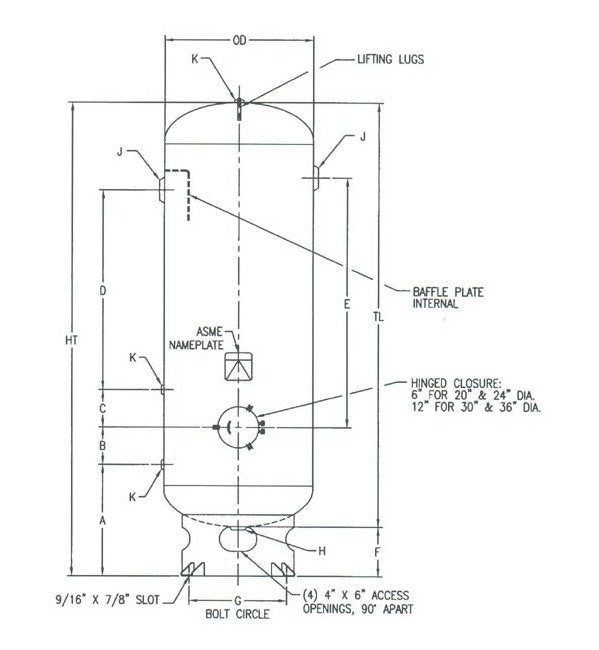

Specifications Dimension A

19.00 inches

Specifications Dimension B

6.00 inches

Specifications Dimension C

6.00 inches

Specifications Dimension D

44.00 inches

Specifications Dimension E

52.00 inches

Specifications Dimension F

8.00 inches

Specifications Dimension G

27.00 inches

Specifications Ht

92.00 inches

Specifications Mawp

150 psi

Specifications Nominal Capacity

240 gal | 32.09 ftÂ³

Specifications Npt Opening H

2 inches

Specifications Npt Opening J

6RFSO

Specifications Npt Opening K

1/2 inches

Specifications Od

30.00 inches

Specifications Tl

84.00 inches

Specifications Tw

750

Specifications Vacuum Rating

29.9 inHg

High-Capacity 240-Gallon Vacuum Receiver with 150 psi MAWP
