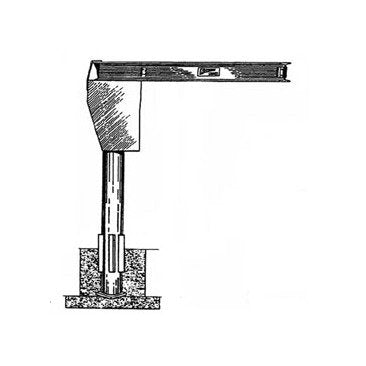

The Model 200 CIM Concrete Insert Mount Jib Crane is engineered for robust performance in standard duty applications, supporting up to 6000 lbs. Designed for efficiency and safety, it offers a span of 18 feet, precise load assembly with boom deflection control, and adjustable features for optimal operation. Compliant with A.I.S.C. Specifications, it ensures durability with precision bearings and customizable electrification options for seamless rotation. Ideal for heavy-duty industrial use, this crane combines strength, versatility, and reliability.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

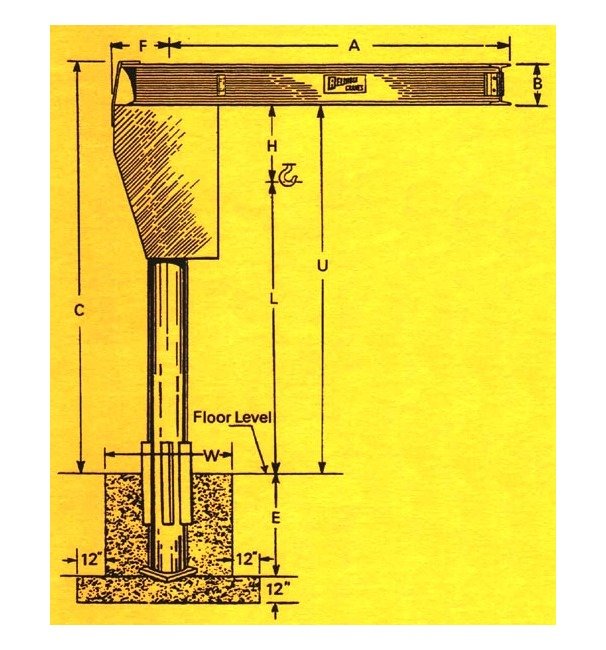

Specifications Boom Size B
20 inches
Specifications Capacity
6000 lbs.
Specifications Footer Depth E
5'-0"
Specifications Footer Width W
8'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
13'-9"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
18'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
4200 lbs.
