High-Capacity PWC Water-Cooled Ceramic Capacitors
High-Capacity PWC Water-Cooled Ceramic Capacitors
SKU:WAT-4d5a67
High-Capacity PWC Water-Cooled Ceramic Capacitors for high-power RF equipment, with 300A capacity & 4000 kVA power rating.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
High-Capacity PWC Water-Cooled Ceramic Capacitors
$259.99
Quantity: 1
Claim Your Seller Account
High-Capacity PWC Water-Cooled Ceramic Capacitors
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

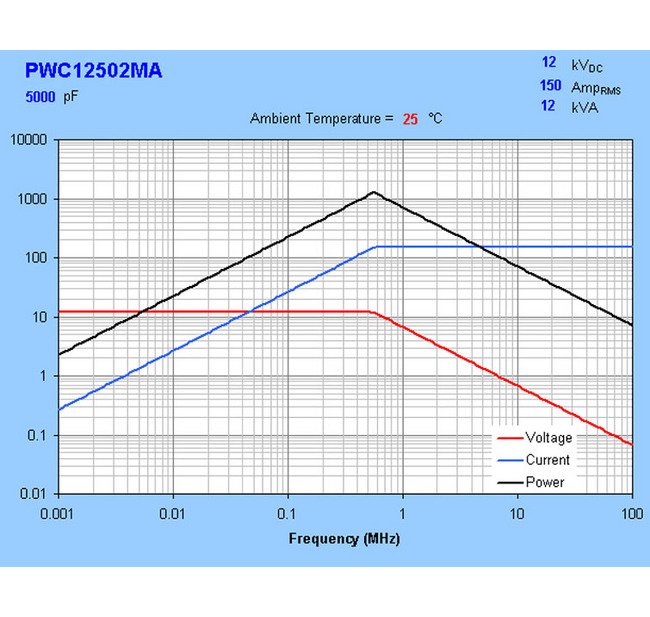

The High-Capacity PWC Water-Cooled Ceramic Capacitors from our PWC Series are designed for demanding applications, offering a current capacity of up to 300 Amperes and a maximum 4000 kVA reactive power rating. Featuring a low dissipation factor Class I dielectric and robust structural strength, these capacitors are optimized for high power levels and frequencies. Ideal for tank circuit operation in high-power RF equipment, they excel in applications like induction heating, dielectric heating, and high-frequency welding. With a VMAX of 12 kV and reliable cooling efficiency, these capacitors ensure consistent performance in extreme conditions.
Product Specifications
Cooling Requirements Closed System Derating
Increase Cooling Flow by 20% when antifreeze is used
Cooling Requirements Cooling Water Pressure
Not to exceed 60 PSIA (132 feet of H2O)
Cooling Requirements Inlet Water Temperature
30ºC or less recommended; not to exceed 50ºC when capacitor cooling is chained
Cooling Requirements Maximum Capacitor Temperature
The maximum allowable temperature of the Inner Terminal is 100ºC.
Cooling Requirements Maximum Temperature Rise
The maximum allowable temperature rise is 10ºC with an inlet temperature of 25ºC.
Specifications Cap
5000 pF
Specifications Capacitance Tolerance
±20% (Standard) | ±10% (Optional)
Specifications Dielectric Strength
Will withstand an AC potential of 1.4 times Rated Working Voltage for 10 Seconds at 25ºC.
Specifications Fh
0.561 MHz
Specifications Fl
0.563 MHz
Specifications Imax Rms
150 A
Specifications Maximum Dissipation Factor
0.05%
Specifications Minimum Insulation Resistance
10000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC
Specifications Smax
1275 kV·A
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC), Maximum Frequency, Maximum Reactive Power, Maximum Current and Date Code
Specifications Storage Temperature Range
-55 to 125 ºC
Specifications Vmax Dc
12 kV
