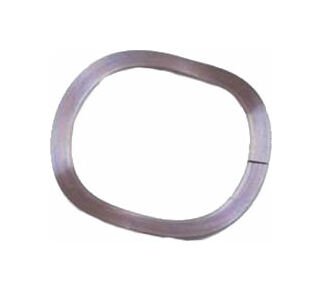

High Carbon Overlap Wave Washer
High Carbon Overlap Wave Washer
SKU:SPR-ea72ec
High Carbon Overlap Wave Washer with unique self-sliding design for reduced height and seamless compression in tight spaces.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Carbon Overlap Wave Washer
$24.99
Quantity: 1
Claim Your Seller Account
High Carbon Overlap Wave Washer
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Carbon Overlap Wave Washer is a versatile fastening solution suitable for various applications, including pushbuttons and slip clutches. Crafted from high carbon material (C 1060-1075 / SWRH72A), this wave washer boasts a height of 2.047 inches, a depth and width of 0.140 inches, and a unique design with four waves. Noteworthy features include the ability to reduce spring height by up to 50%, enabling easy fitting in tight axial and radial spaces. Its self-sliding design allows for compression without galling, ensuring smooth performance. With a minimum inner diameter of 43.11 inches and a maximum outer diameter of 52.00 inches, this wave washer provides reliable support in various mechanical assemblies. Please note that this product may contain chemicals subject to Prop 65 Warning.
Product Specifications
Specifications Application Uses
Fastening, Pushbutton, Slip Clutch, etc.
Specifications Country Of Origin
-
Specifications Depth
0.140 Inch
Specifications Featuresadvantagesbenefits
Enables the spring height to be reduced by as much as 50%, fits in tighter axial and radial locations, slides across itself allowing compression with no galling of the bore in which it is installed
Specifications Free Height Approx In
3.56 Inch
Specifications Height
2.047 Inch
Specifications Loaded Height In
2.36 Inch
Specifications Material
High Carbon, C 1060-1075 / SWRH72A
Specifications Maximum Od In
52.00 Inch
Specifications Minimum Id In
43.11 Inch
Specifications Of Waves
4
Specifications Thickness In
0.61 Inch
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.020940 Pound
Specifications Width
0.140 Inch
