High Carbon Steel Twisted Power Side Tuft Cleaning Brush 7/8in
High Carbon Steel Twisted Power Side Tuft Cleaning Brush 7/8in
SKU:TWI-176b06
Efficiently clean and polish threads, tube walls, and cylinders with the High Carbon Steel Twisted Power Brush.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Carbon Steel Twisted Power Side Tuft Cleaning Brush 7/8in
$29.99
Quantity: 1
Claim Your Seller Account
High Carbon Steel Twisted Power Side Tuft Cleaning Brush 7/8in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Carbon Steel Twisted Power Side Tuft Cleaning Brush is designed for robust cleaning and polishing applications, including threads, tube walls, and cylinders. Featuring a solid concentration of high carbon steel bristles with a 0.005in filament diameter, this brush ensures superior stiffness and minimal flexing during operation. Optimized for use in power tools, it offers exceptional performance when paired with the Side Tuft Brush Holder for increased bristle trim and higher RPM operation.
Product Specifications
Accessories

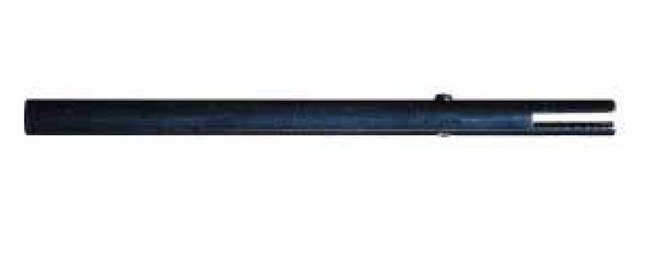

Side Tuft Brush HoldersPart Number - 01041Description - Slightly reduces bristle trim length for more aggressive brush action while allowing the brush to be driven at a higher RPM.Stem Diameter - 1/4 in.Overall Length - 3-3/8 in.Shank Diameter - 1/4 in. for 0.150 stem diameter
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
7/8 in
Specifications Brush Length
5/8 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.005 in
Specifications Fill Material
High Carbon Steel
Specifications Overall Length
2-1/4 in
Specifications Stem Diameter
0.150 in
