High-Carbon Steel Under Running Push Type End Trucks
High-Carbon Steel Under Running Push Type End Trucks
Reliable high-carbon steel end trucks for overhead crane systems. Enhance efficiency and safety with precision-engineered design.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
High-Carbon Steel Under Running Push Type End Trucks
$1,599.99
Quantity: 1
Claim Your Seller Account
High-Carbon Steel Under Running Push Type End Trucks
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

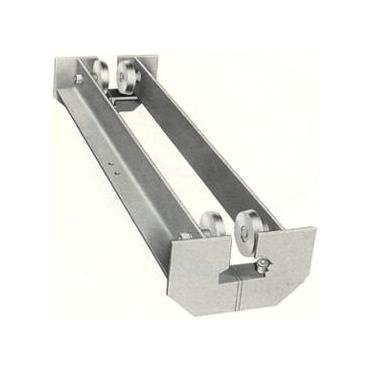

Enhance your crane system with our high-carbon steel under running push type end trucks. Designed for reliability, these end trucks feature solid steel wheels with precision ball bearings, heavy-duty side rollers for optimal guidance, and sturdy structural steel frames for maximum rigidity. With safety lugs included, these trucks ensure protection and efficiency in any operating conditions. Experience easy erection on both open and closed runways with the split truck design. With a capacity of 2 tons and compliance with industry standards, these end trucks are a dependable choice for overhead crane systems.

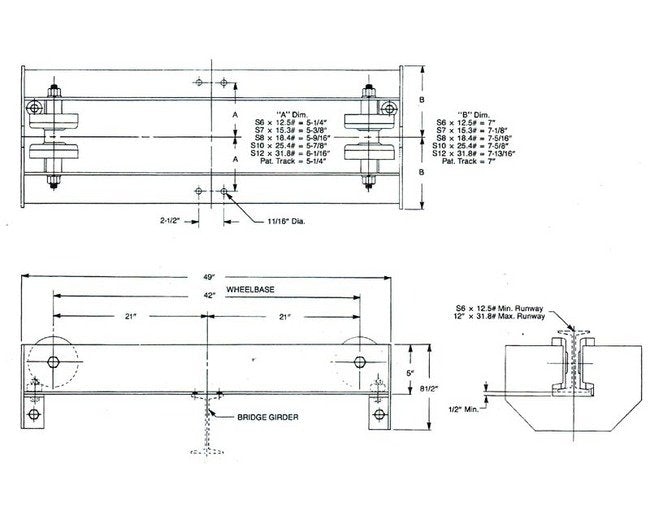

Product Specifications
Specifications Adjustable For Standard Beam Sizes
3.25 -3.33 Pat. Track
Specifications Capacity
2 Tons
Specifications Crane Wheel Diameter
5 inches
Specifications Max Wheel Load Per Pair
2900 lbs.
Specifications Model
Model USP
Specifications Net Weight Per Pair
280 lbs.
Specifications Wheel Base
3'-6"
Standard Features 0
Wheels : Solid high carbon steel wheels running on sealed precision ball bearings.Side Rollers : Heavy duty precision side roller bearing guidance insures long life of wheels and runway rails and will not allow crane to skew or bind under any loading or operating conditions. Truck Frames : End truck frames are fabricated from heavy structural steel angles jig welded and precision bored to insure true alignment. Heavy structural front plates are provided for independent truck rigidity and positive tracking. Safety lugs are included as standard equipment for maximum protection. Split truck design allows quick easy erection on all open or closed runway systems.
