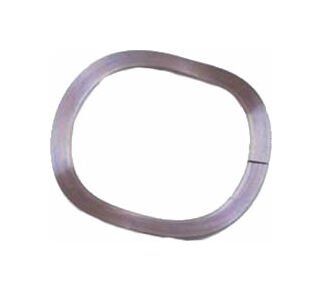

High Carbon Wave Washer with Overlap
High Carbon Wave Washer with Overlap
SKU:SPR-249188
High Carbon Wave Washer with Overlap - Precision-engineered flat spring for secure fastening, push-button, and slip clutch applications. Durable design with 3 waves and 0.25-inch thickness.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
High Carbon Wave Washer with Overlap
$12.99
Quantity: 1
Claim Your Seller Account
High Carbon Wave Washer with Overlap
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Carbon Wave Washer with Overlap is a precision-engineered flat spring designed for various applications such as fastening, push-button, and slip clutch mechanisms. Crafted from High Carbon material (C 1060-1075 / SWRH72A), it offers exceptional durability and performance. With a height of 0.630 inches, it enables a reduction in spring height by up to 50%, fitting seamlessly in tight axial and radial spaces. The patented design allows for smooth compression without galling of the bore, ensuring reliable operation. This wave washer features 3 waves, a thickness of 0.25 inches, and meets stringent quality standards.
Product Specifications
Specifications Application Uses
Fastening, Pushbutton, Slip Clutch, etc.
Specifications Country Of Origin
-
Specifications Depth
0.090 Inch
Specifications Featuresadvantagesbenefits
Enables the spring height to be reduced by as much as 50%, fits in tighter axial and radial locations, slides across itself allowing compression with no galling of the bore in which it is installed
Specifications Free Height Approx In
2.29 Inch
Specifications Height
0.630 Inch
Specifications Loaded Height In
1.57 Inch
Specifications Material
High Carbon, C 1060-1075 / SWRH72A
Specifications Maximum Od In
16.00 Inch
Specifications Minimum Id In
11.28 Inch
Specifications Of Waves
3
Specifications Thickness In
0.25 Inch
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.000812 Pound
Specifications Width
0.090 Inch
