High Cracking Pressure 3/4" Threaded Check Valve
High Cracking Pressure 3/4" Threaded Check Valve
SKU:INL-203cb0
Versatile 3/4" Threaded Check Valve with high cracking pressure, ideal for various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Cracking Pressure 3/4" Threaded Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
High Cracking Pressure 3/4" Threaded Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Cracking Pressure 3/4" Threaded Check Valve is a versatile and reliable solution for applications requiring cracking pressures from 2 to 40 psi. Featuring a spring-assisted design, it offers tight shut-off, horizontal or vertical installation, and easy maintenance. Constructed with quality materials like stainless steel, it ensures durability and longevity. Ideal for various applications such as chemical lines, compressor discharge, and more, this valve meets ANSI, MSS, and ASTM standards, making it a dependable choice for institutional and government procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 470ºF)
Codes And Standards Ansi
B1.20.1
Codes And Standards Astm
303 SS not acceptable for CRN
Codes And Standards Mss
SP-25
Features 0
Higher cracking pressures (2 to 40 psi)1/4" to 2 1/2" Line size450 to 2500 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy maintenanceVersatile

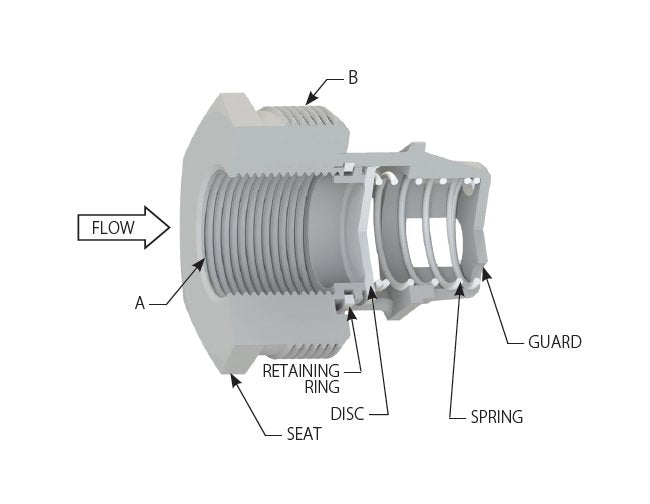

Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
303 SS
Materials Of Construction Spring
302 SS
Options 0
Soft seat
Specifications Approx Net Weight Each
0.88 lb | 0.4 kg
Specifications Cold Working Pressure
0 psig | 2000 psig | 0 barg | 138 barg
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
6
Specifications Friction Loss Meter Of Pipe
1.8
Specifications Outside Thread Mnpt B
1.50 in
Specifications Series
Restrictor Check
Specifications Valve Cracking Pressure
5.3 psi | 0.365 bar
Specifications Valve Cracking Pressure Tolerance
±10%
