High Current 2.0mm Threaded Socket with External Plug
High Current 2.0mm Threaded Socket with External Plug
SKU:HIG-ab8b1e
Versatile 2.0mm High Current Socket for precise and durable connections in high voltage setups.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
High Current 2.0mm Threaded Socket with External Plug
$44.99
Quantity: 1
Claim Your Seller Account
High Current 2.0mm Threaded Socket with External Plug
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

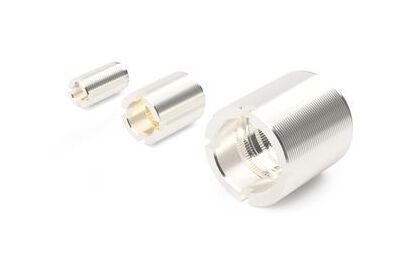

The UJMSW Series 2.0mm Plug Diameter External Thread Type High Current Socket is a versatile solution for high current and high voltage applications. Designed to be attached to bus bars, insulated panels, round terminals, and threaded conductors, this socket excels in custom designs. The gold and silver plating on the louver/sleeve enhances conductivity and durability. With a maximum current rating of 25A at 25°C, this socket ensures reliable performance in demanding environments. Note that washers, spring washers, and nuts are not included. Contact us to discuss your specific requirements and compliance needs.
Product Specifications
Specifications Diameter D
2.2 mm
Specifications Dimension K
1.5 mm
Specifications Dimension Kl
1.5 mm
Specifications Dimension M
M8 x 0.75P mm
Specifications Dimension Ml
16.0 mm
Specifications Maximum Current Rating A At 25 Degree Celsius C T
25 A
Specifications Plating Louversleeve
Gold (Au) | Silver (Ag)
Specifications Plug Diameter
2.0 mm
Specifications Remarks
(LV082/12-T012-BE25-G25)
Specifications Series
UJMSW
Specifications Thread Type
Fine Thread
