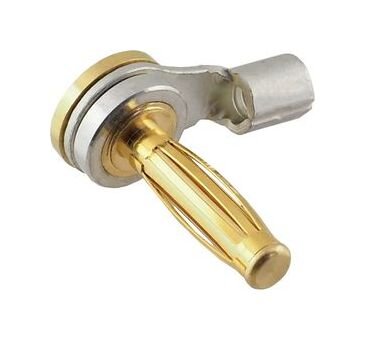

High Current 4.0mm Right Angle Banana Plug Socket Pin
High Current 4.0mm Right Angle Banana Plug Socket Pin
SKU:HIG-659f2a
High Current 4.0mm Right Angle Banana Plug Socket Pin for durable and secure connections in tight spaces.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Current 4.0mm Right Angle Banana Plug Socket Pin
$24.99
Quantity: 1
Claim Your Seller Account
High Current 4.0mm Right Angle Banana Plug Socket Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience easy attachment and detachment with our high-current right angle banana plug socket pin. Crafted with high-reliability beryllium copper louver for durability. Suitable for tight spaces with top or bottom insertion options. Ensures secure connections with the maximum current rating of 30A and durability up to 5,000 cycles. Meet your high current and high voltage needs with precision and quality.
Product Specifications
Materials Crimp Terminal
Copper Alloy, Sn plating over Ni (R3.5-6)
Materials Louver
Copper Alloy, Au plating over Ni
Materials Plug
Brass, Au plating over Ni
Materials Ring
Brass, Sn plating over Ni
Note
Be mindful of the wire's heat resistance.Insert and remove the socket perpendicularly to the plug.If the wire moves easily after insertion, ensure it is securely fastened to prevent displacement.
Specifications Acceptable Socket Diameter
4.0 mm | 0.157 in
Specifications Durability
5,000 cycles
Specifications Maximum Contact Resistance
15 mΩ
Specifications Maximum Current Rating A At 25 Degree Celsius C T
30 A
Specifications Maximum Insertion Force
10 N
Specifications Solid Wire
1.82 to 2.4 mm²
Specifications Strand Wire
2.63 to 4.6 mm²
Specifications Temperature Range
-40 to 150 ºC
Specifications Thickness
12 AWG
