High Current Double Ended 4mm Flash Lamp Connector
High Current Double Ended 4mm Flash Lamp Connector
SKU:HIG-d5304c
High current double-ended 4mm flash lamp connector for reliable high current interconnections. Multilam band technology for higher ratings and lower temperature rise.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Current Double Ended 4mm Flash Lamp Connector
$49.99
Quantity: 1
Claim Your Seller Account
High Current Double Ended 4mm Flash Lamp Connector
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Current Double Ended 4mm Flash Lamp Connector from the Flash Lamp Series Electrical Connectors is designed to offer a reliable and cost-effective solution for high current interconnections in applications where space, weight, and temperature are critical. Featuring Multilam band contact spring finger technology, this connector ensures higher current ratings with lower temperature rise compared to traditional designs. With a Direct Current (DC) Voltage of 12 kV and a Current Rating of 75 A, it provides a secure and efficient connection. The silicone rubber over moldings on the contacts enhance voltage barriers, making it a durable choice for various applications.
Product Specifications
Applications 0
LaserBack Lighting & IlluminationPercussion
Ordering Information 0
Flash lamp plugs can be ordered as single ended or double ended assemblies in any combination of molded plug or socket contact at each end. Consult factory for custom configuration part numbers.Flash lamp contacts can be ordered with or without wire terminated. connectronics offers a variety of wire constructions for use with flash lamp contacts. Consult factory for additional information.
Specifications Contact Body Material
Tellurium Copper Alloy 145, Silver Plated Per qq-s-365
Specifications Current Rating
75 A
Specifications Direct Current Dc Voltage
12 kV
Specifications Features
High Current RatingsOperating Voltage: through 12 KVDCTemperature Range: -40°C to +175°CSea Level to 10,000 ft OperationOvermolded Strain Relief available4mm, 5mm, 5.5mm and 6mm optionsStackable or Threaded options

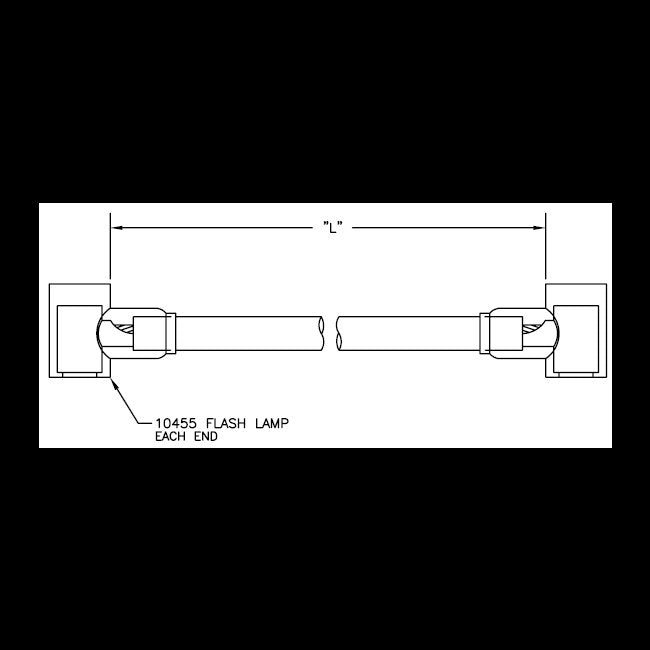

Specifications Length L
13 in
Specifications Molded Strain Relief Material
Silicone Rubber, Gray
Specifications Multi Lam Contact Band Spring Fingers Material
Beryllium Copper Alloy, Gold Plated Per MIL-G-45204
Specifications Sea Level Altitude
0 to 10,000 ft
Specifications Size
4 mm | 0.157 in
Specifications Wirecable Material
Assemblies supplied with wire are terminated with #12; AWG (19/25; SPC conductor with silicone insulation rated for 20 KVDC (0.205 dia.) 1 REF. connectronics part no . 066-035-01.
