High Current Double Ended 4mm Flash Lamp Molded Plug
High Current Double Ended 4mm Flash Lamp Molded Plug
SKU:HIG-0c104f
High-current 4mm double ended flash lamp plug with multilam band technology for superior performance and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Current Double Ended 4mm Flash Lamp Molded Plug
$29.99
Quantity: 1
Claim Your Seller Account
High Current Double Ended 4mm Flash Lamp Molded Plug
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Double Ended 4mm Flash Lamp Molded Plug from the Flash Lamp Series Electrical Connectors by Connectronics is an ideal interconnection solution for high-current applications. With a low cost design, this connector features Multilam band contact spring finger technology for increased current ratings and lower temperature rise. The Tellurium Copper Alloy contact body and Beryllium Copper Alloy spring fingers ensure durability and optimal performance. Additionally, the silicone rubber over moldings provide a higher voltage barrier, making it suitable for varied environments.
Product Specifications
Applications 0
LaserBack Lighting & IlluminationPercussion
Ordering Information 0
Flash lamp plugs can be ordered as single ended or double ended assemblies in any combination of molded plug or socket contact at each end. Consult factory for custom configuration part numbers.Flash lamp contacts can be ordered with or without wire terminated. connectronics offers a variety of wire constructions for use with flash lamp contacts. Consult factory for additional information.
Specifications Contact Body Material
Tellurium Copper Alloy 145, Silver Plated Per qq-s-365
Specifications Current Rating
75 A
Specifications Direct Current Dc Voltage
12 kV
Specifications Features
High Current RatingsOperating Voltage: through 12 KVDCTemperature Range: -40°C to +175°CSea Level to 10,000 ft OperationOvermolded Strain Relief available4mm, 5mm, 5.5mm and 6mm optionsStackable or Threaded options

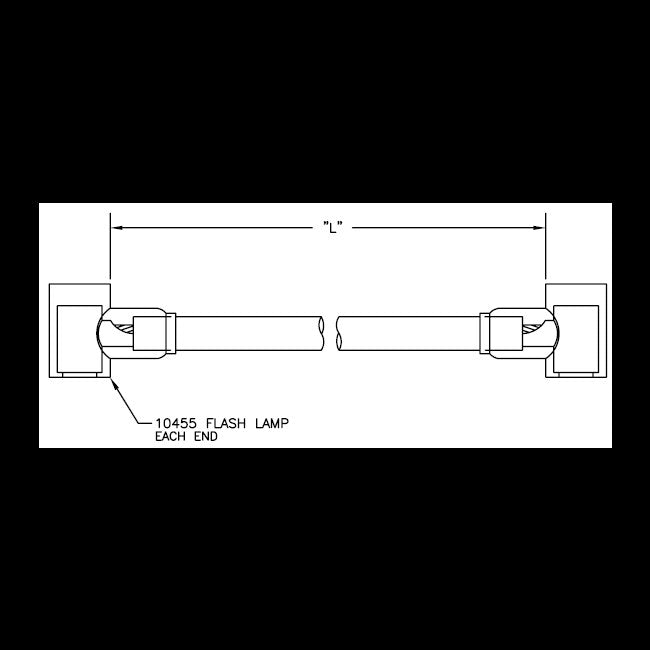

Specifications Length L
48 in
Specifications Molded Strain Relief Material
Silicone Rubber, Gray
Specifications Multi Lam Contact Band Spring Fingers Material
Beryllium Copper Alloy, Gold Plated Per MIL-G-45204
Specifications Sea Level Altitude
0 to 10,000 ft
Specifications Size
4 mm | 0.157 in
Specifications Wirecable Material
Assemblies supplied with wire are terminated with #12; AWG (19/25; SPC conductor with silicone insulation rated for 20 KVDC (0.205 dia.) 1 REF. connectronics part no . 066-035-01.
