High Current Flash Lamp Molded Plug, 4mm
High Current Flash Lamp Molded Plug, 4mm
SKU:HIG-fde17d
Cost-effective high current 4mm flash lamp connector for space-constrained applications, with 'Multilam band' technology and silicone rubber molding for enhanced current ratings and temperature control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Current Flash Lamp Molded Plug, 4mm
$29.99
Quantity: 1
Claim Your Seller Account
High Current Flash Lamp Molded Plug, 4mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Single Ended 4mm Size Flash Lamp Molded Plug from the Flash Lamp Series Electrical Connectors is a cost-effective interconnection solution designed for high current applications with space, weight, and temperature constraints. Featuring 'Multilam band' contact spring finger technology, this plug offers higher current ratings with lower temperature rise than conventional designs. With silicone rubber over moldings attached to high voltage wire, it provides a sturdy and high-voltage barrier for reliable performance.
Product Specifications
Applications 0
LaserBack Lighting & IlluminationPercussion
Ordering Information 0
Flash lamp plugs can be ordered as single ended or double ended assemblies in any combination of molded plug or socket contact at each end. Consult factory for custom configuration part numbers.Flash lamp contacts can be ordered with or without wire terminated. connectronics offers a variety of wire constructions for use with flash lamp contacts. Consult factory for additional information.
Specifications Contact Body Material
Tellurium Copper Alloy 145, Silver Plated Per qq-s-365
Specifications Current Rating
75 A
Specifications Direct Current Dc Voltage
12 kV
Specifications Features
High Current RatingsOperating Voltage: through 12 KVDCTemperature Range: -40°C to +175°CSea Level to 10,000 ft OperationOvermolded Strain Relief available4mm, 5mm, 5.5mm and 6mm optionsStackable or Threaded options

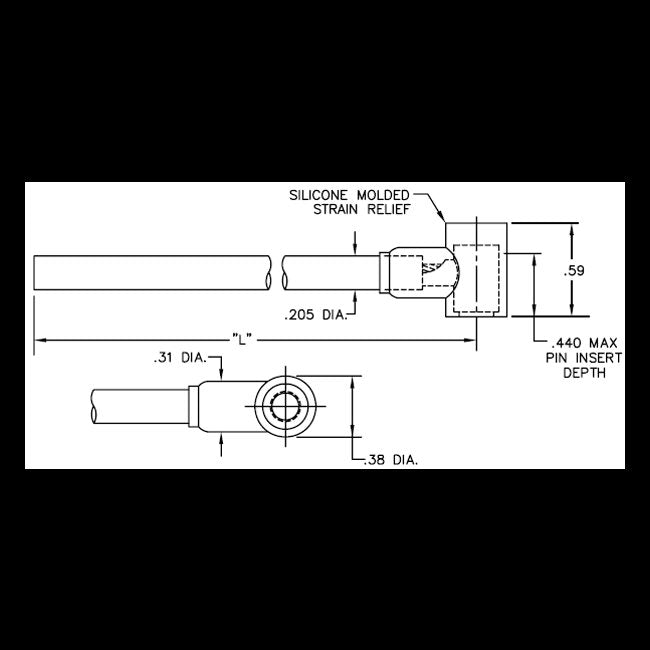

Specifications Length L
24 in
Specifications Molded Strain Relief Material
Silicone Rubber, Gray
Specifications Multi Lam Contact Band Spring Fingers Material
Beryllium Copper Alloy, Gold Plated Per MIL-G-45204
Specifications Sea Level Altitude
0 to 10,000 ft
Specifications Size
4 mm | 0.157 in
Specifications Wirecable Material
Assemblies supplied with wire are terminated with #12; AWG (19/25; SPC conductor with silicone insulation rated for 20 KVDC (0.205 dia.) 1 REF. connectronics part no . 066-035-01.
