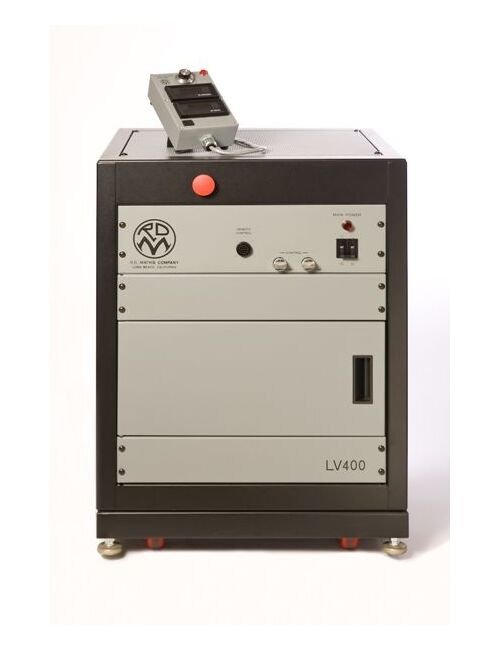

The High Current Low Voltage AC Power Supply from the LV Series is a versatile and reliable solution designed to meet the power needs of the thin film industry. With a 100% duty cycle and a range of tap switch voltage options, operators can easily adjust voltage without the hassle of relocating cables. This power supply features a SCR Controlled Transformer, hand-held cable remote control, and current limiting capabilities for precise power management. Built with rugged construction and premium components, it ensures efficient performance while maintaining a cool operation.
Product Specifications
Accessories 0
250 Ampere (A) (4/0 American Wire Gauge (AWG) Welding Cable (approximately 0.83 Inch (in) Outer Diameter) with terminal Lugs (1/2 Inch (in) Bolt Hole)500 Ampere (A) (500 kcmil) Welding Cable (approximately 1.25 Inch (in) Outer Diameter) with terminal Lugs (5/8 Inch (in) Bolt Hole)
Features 0
Low ProfileSCR Controlled Transformer100% Duty CycleHand Held Cable Remote Control with manual voltage potentiometer and Digital meters5, 10, 15 and 40 Volt (V) Tap switchSilver Plated Switch and Output terminalsDigital meter, secondary voltage and currentSoft Start on power upCurrent Limiting 4 to 20, 0 to 5, 10 to 50 Milli Ampere 9mA) and 0 to 10 Volt (V) control signal input capabilitiesEmergency Off button and Interlock protection on access panel and door
Manufacturing Notes 0
Specify Cable length in feet and lug sizes when ordering.
Specifications Ac Input Voltage
208 V | 220 V | 240 V
Specifications Depth
22.5 in
Specifications Duty Cycle
100 %
Specifications Height
30.25 in
Specifications Input Current
25 A
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Number Of Phase
1
Specifications Output Terminal Dimensions
3/8 x 2 x 2 Inch (in) with 9/16 Inch (in) diameter hole in center
Specifications Output Terminal Material
Silver Plated Copper
Specifications Power Output
0 to 10 Volt (V) AC at 400 Ampere (A) | 0 to 20 Volt (V) AC at 200 Ampere (A) | 0 to 40 Volt (V) AC at 100 Ampere (A) | 0 to 5 Volt (V) AC at 800 Ampere (A)
Specifications Power Rating
4 Kilo-Volt-Ampere (KVA) (5.5 Kilo-Volt-Ampere (KVA) Surge)
Specifications Shipping Weight
400 Pound (lb) (Approximate)
Specifications Switch
Silver Plated 4 Position Blade type with Screw knob Release
Specifications Tap Switch Voltage
5 V | 10 V | 20 V | 40 V
Specifications Weight
343 lb
Specifications Width
24 in
