High Current Power Feedthrough and Cable Set
High Current Power Feedthrough and Cable Set
SKU:POW-72c1be
Transfer up to 400A at 50V with our durable High Current Power Feedthrough and Cable Set, ideal for vacuum applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
High Current Power Feedthrough and Cable Set
$349.99
Quantity: 1
Claim Your Seller Account
High Current Power Feedthrough and Cable Set
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

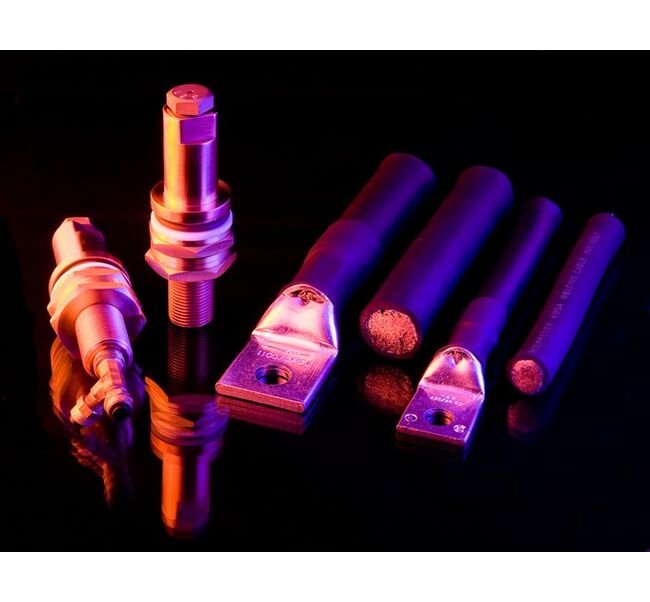

The High Current Power Feedthrough and Cable Set is designed for transferring up to 400A of electrical power at a maximum voltage of 50V into vacuum environments. Constructed with Oxygen Free Copper and brass feedthrough materials for superior conductivity and durability, this set features PTFE insulators to ensure strength and reliability. The one-piece construction eliminates any risk of leakage, meeting the highest standards for performance and safety in demanding applications. Additionally, a high current, water-cooled unit capable of handling 1000A is available for specialized requirements.
Product Specifications
Specifications Feedthrough Current
400 A
Specifications Feedthrough Material
Brass | Oxygen Free Copper (OFC)
Specifications Insulator Material
PolyTetraFluoroEthylene (PTFE)
Specifications Maximum Transfer Voltage
50 V
