High Current Right Angle Socket Pin - 3.6mm Acceptable Diameter
High Current Right Angle Socket Pin - 3.6mm Acceptable Diameter
SKU:HIG-174ffd
Secure and durable High Current Right Angle Socket Pin for reliable connections in confined spaces.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Current Right Angle Socket Pin - 3.6mm Acceptable Diameter
$24.99
Quantity: 1
Claim Your Seller Account
High Current Right Angle Socket Pin - 3.6mm Acceptable Diameter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

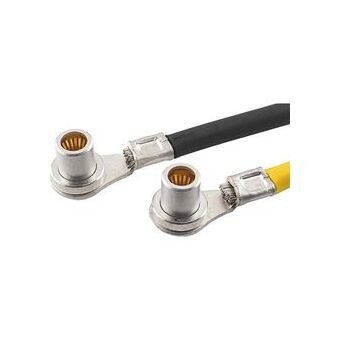

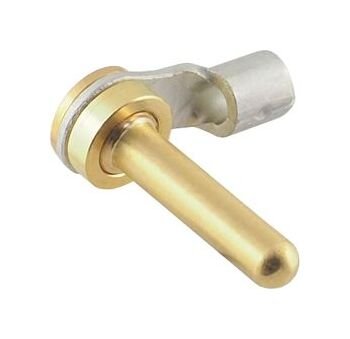

The High Current Right Angle Socket Pin offers easy attachment and detachment with a reliable beryllium copper louver design. Its versatile installation options, including top or bottom insertion, make it ideal for confined spaces. With durability up to 5,000 cycles and a maximum current rating of 27A, this pin ensures secure connections and optimal performance. Constructed with premium materials like brass and copper alloy, it meets strict quality standards for lasting reliability.
Product Specifications
Materials Crimp Terminal
Copper Alloy, Sn plating over Ni (R2-4S)
Materials Plug
Brass, Au plating over Ni
Materials Ring
Brass, Sn plating over Ni
Note
Be mindful of the wire's heat resistance.Insert and remove the socket perpendicularly to the plug.If the wire moves easily after insertion, ensure it is securely fastened to prevent displacement.

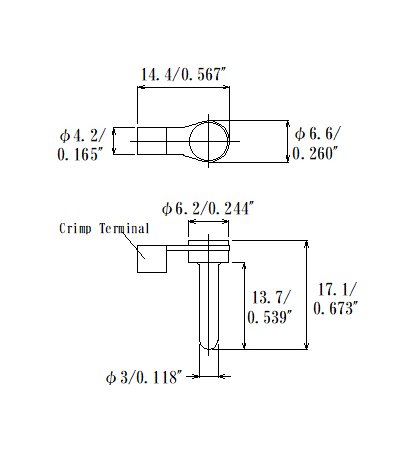

Specifications Acceptable Socket Diameter
3.6 mm | 0.142 in
Specifications Durability
5,000 cycles
Specifications Maximum Contact Resistance
15 mΩ
Specifications Maximum Current Rating A At 25 Degree Celsius C T
27 A
Specifications Maximum Insertion Force
10 N
Specifications Solid Wire
1.40 to 1.82 mm²
Specifications Strand Wire
1.80 to 2.63 mm²
Specifications Temperature Range
-40 to 150 ºC
Specifications Thickness
14 AWG
