High Current Right Angle Socket Pin - 8.0mm Acceptable Plug Diameter

Name: High Current Right Angle Socket Pin - 8.0mm Acceptable Plug Diameter
Brand: JC CHERRY INC.
SKU: HIG-90b3fd
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-90b3fd

High Current Right Angle Socket Pin for robust and reliable connections in tight spaces.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

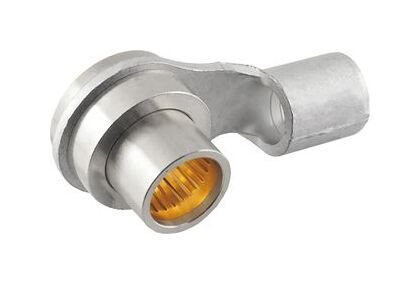

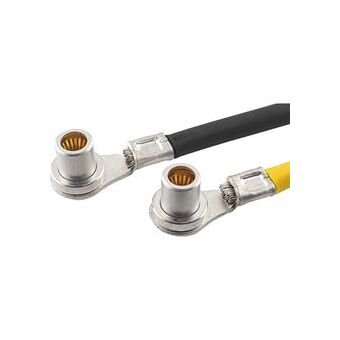

The High Current Right Angle Socket Pin features a durable beryllium copper louver for easy attachment and detachment. With a maximum current rating of 85A and a temperature range of -40 to 150 ºC, it offers high reliability in various environments. The copper alloy construction with strategic plating ensures robustness and longevity, meeting stringent durability standards. Designed for efficiency, this socket pin allows easy insertion and removal in tight spaces, making it a versatile and reliable solution for high current and high voltage applications.

Product Specifications

Materials Crimp Terminal

Copper Alloy, Sn plating over Ni (R14-10)

Materials Louver

Copper Alloy, Au plating over Ni

Materials Plug

Brass, Au plating over Ni

Materials Ring

Brass, Sn plating over Ni

Materials Sleeve

Brass, Tin (Sn) Plating Over Nickel (Ni)

Note

Be mindful of the wire's heat resistance.Insert and remove the socket perpendicularly to the plug.If the wire moves easily after insertion, ensure it is securely fastened to prevent displacement.

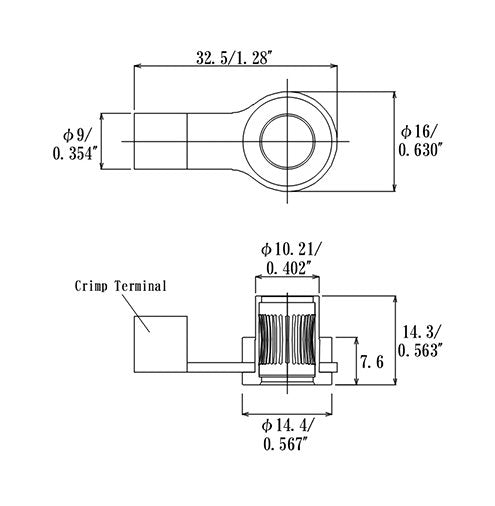

Specifications Acceptable Plug Diameter

8.0 mm | 0.315 in

Specifications Durability

5,000 cycles

Specifications Maximum Contact Resistance

15 mΩ

Specifications Maximum Current Rating A At 25 Degree Celsius C T

85 A

Specifications Maximum Insertion Force

10 N

Specifications Strand Wire

10.52 to 16.78 mm²

Specifications Temperature Range

-40 to 150 ºC

Specifications Thickness

6 AWG
