High Current Rod Core Inductor - Energy Storage Solution

Name: High Current Rod Core Inductor - Energy Storage Solution
Brand: Triad Magnetics
SKU: IND-a194cf
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-a194cf

High Current Rod Core Inductor - Smoothing current for stability, cost-effective solution for energy storage in automated installations.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

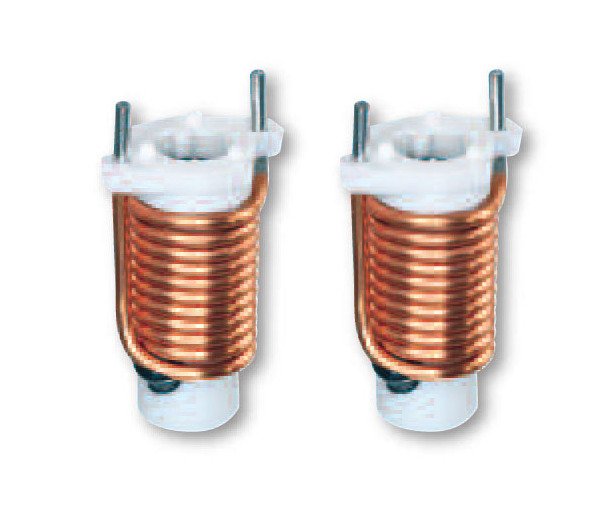

The High Current Rod Core Inductor is a reliable energy storage component designed for Switch Mode/High Frequency applications. With a DC Rated Inductance of 2.54 µH and Max. Current of 11.60 A, this inductor ensures a stable current output by smoothing the waveform. It features a low DC Resistance of 5.50 mOhm, making it ideal for high current operations. Moreover, it is compatible with automated P.C.B. installation, offering a cost-effective solution for energy conditioning.

Product Specifications

Note 0

A FIRCH-KIT is available which includes one of each of the above listed components.

Specifications Color Code

Red Dot

Specifications Dc Rated Inductance

2.54 ÂµH

Specifications Dc Resistance

5.50 mOhm

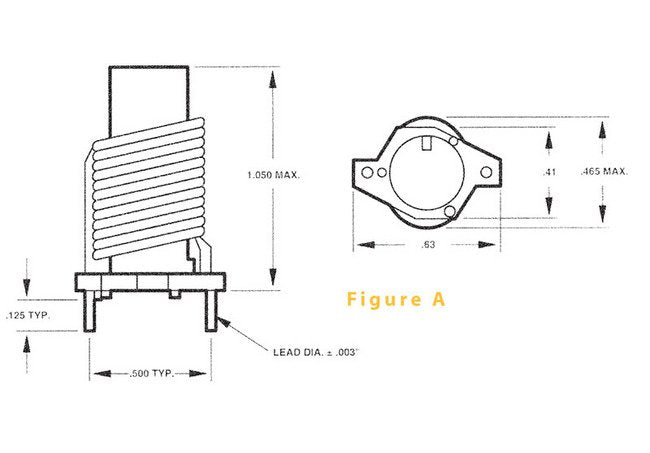

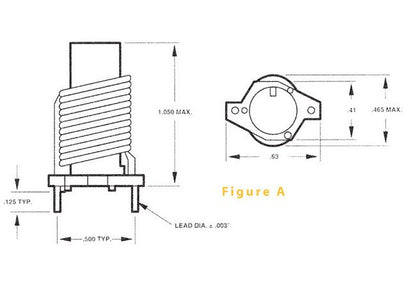

Specifications Lead Diameter

0.050 in

Specifications Max Current

11.60 A

Specifications Operating Frequency

20 to 200 kHz

Specifications Weight

0.030 lb

Technical Notes 0

Rated current 40 ÂºC temperature rise.Inductance Tolerance +/-15%
