High Current Rod Core Inductor - Energy Storage Solution

Name: High Current Rod Core Inductor - Energy Storage Solution
Brand: Triad Magnetics
SKU: IND-2f1879
Price: 29.99 USD
Availability: OutOfStock

SKU:IND-2f1879

Enhance current stability with our high-quality High Current Rod Core Inductor. Ideal for automated P.C.B. installation.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

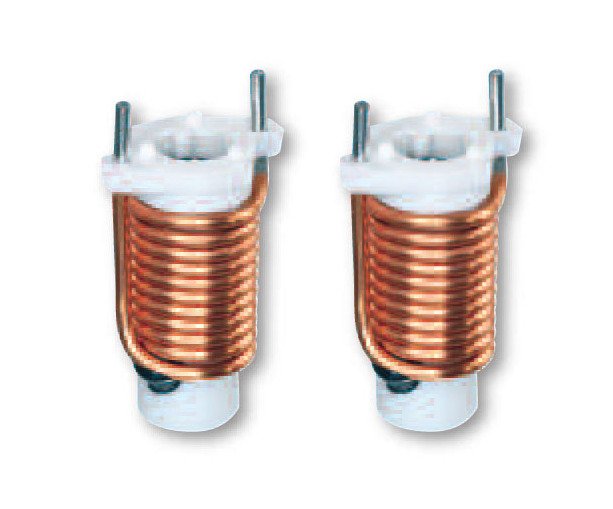

The High Current Rod Core Inductor from our Switch Mode/High Frequency Rod Core Inductors line is a cost-effective energy storage solution designed for smoothing out current waveforms, ensuring stable output. With a DC Rated Inductance of 3.05 µH, Max. Current of 9.70 A, and low DC Resistance at 7.30 mOhm, this inductor is ideal for applications requiring operating frequencies between 20 to 200 kHz. Additionally, it features a Yellow Dot Color Code for easy identification and is suitable for automated P.C.B. installation. Enhance your system's performance and reliability with this efficient inductor.

Product Specifications

Note 0

A FIRCH-KIT is available which includes one of each of the above listed components.

Specifications Color Code

Yellow Dot

Specifications Dc Rated Inductance

3.05 ÂµH

Specifications Dc Resistance

7.30 mOhm

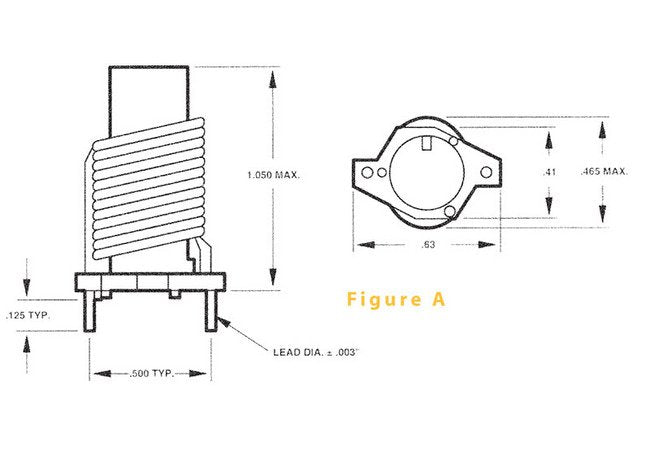

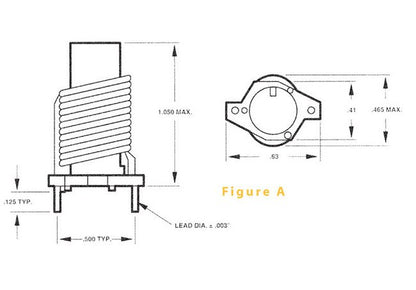

Specifications Lead Diameter

0.045 in

Specifications Max Current

9.70 A

Specifications Operating Frequency

20 to 200 kHz

Specifications Weight

0.030 lb

Technical Notes 0

Rated current 40 ÂºC temperature rise.Inductance Tolerance +/-15%
