Optimize current waveforms with our High Current Rod Core Inductor. Ideal for industrial stability and efficiency.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

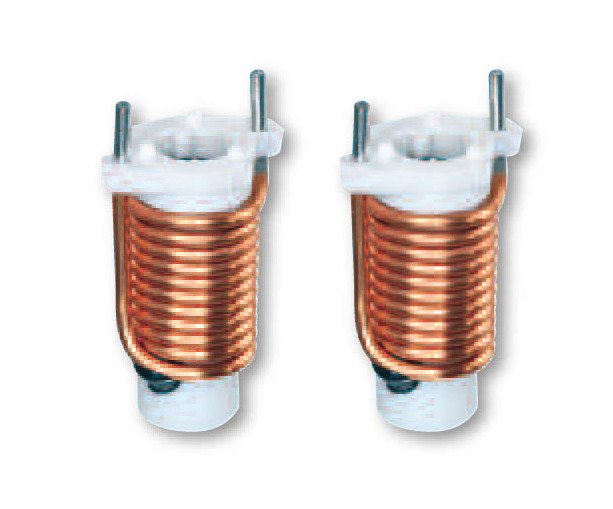

The High Current Rod Core Inductor from our Switch Mode/High Frequency Rod Core Inductor line is a cost-effective energy storage solution designed to smoothen current waveforms for a stable output. With a DC Rated Inductance of 7.22 µH and a Max. Current of 4.8 A, this inductor ensures optimal performance. It is crafted for compatibility with automated P.C.B. installation, making it ideal for industrial applications where efficiency and reliability are crucial.

Product Specifications

Note 0

A FIRCH-KIT is available which includes one of each of the above listed components.

Specifications Color Code

Brown Dot

Specifications Dc Rated Inductance

7.22 ÂµH

Specifications Dc Resistance

26.10 mOhm

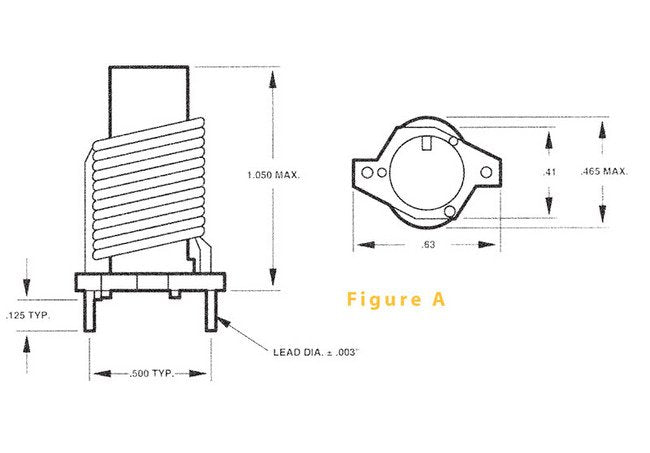

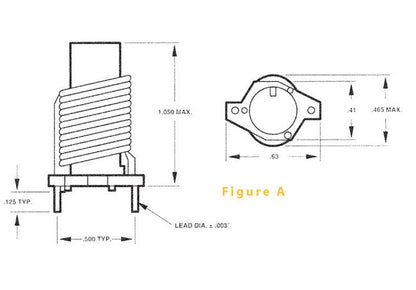

Specifications Lead Diameter

0.028 in

Specifications Max Current

4.8 A

Specifications Operating Frequency

20 to 200 kHz

Specifications Weight

0.030 lb

Technical Notes 0

Rated current 40 ÂºC temperature rise.Inductance Tolerance +/-15%
