High-Density Lead Shielding Sheet, 50.8mm Thickness
High-Density Lead Shielding Sheet, 50.8mm Thickness
SKU:RAD-2f29b6
Premium 50.8mm lead shielding sheet for radiation protection, corrosion resistance & sound absorption. Customizable sizes & quick turnaround. ASTM & Federal standards-compliant.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
High-Density Lead Shielding Sheet, 50.8mm Thickness
$199.99
Quantity: 1
Claim Your Seller Account
High-Density Lead Shielding Sheet, 50.8mm Thickness
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High-Density Lead Shielding Sheet in 50.8mm thickness by MarShield™ is a top-quality radiation protection solution. Compliant with ASTM B-29, B-749, Federal QQ-L-171E, and QQ-L-201F standards, this sheet offers superior shielding against radiation, corrosion resistance, and exceptional sound and vibration absorption capabilities. Customizable sizes and thicknesses available. With quick turnaround times and expert installation services, MarShield™ ensures premium quality for diverse applications.
Product Specifications
Additional Options Additional Options

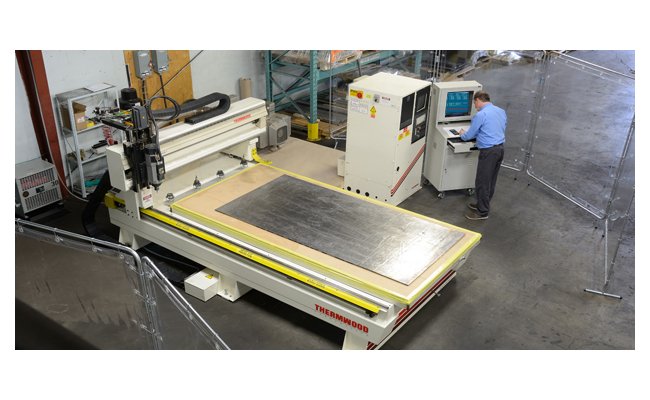

Available as laminated panels, adhesivebonded to plywood, gypsum wallboard and other supporting materials. Available finishing options, including custom milling, custom machining and cutting into any shape or part as small as 1" x 0.35".
Key Features Key Features

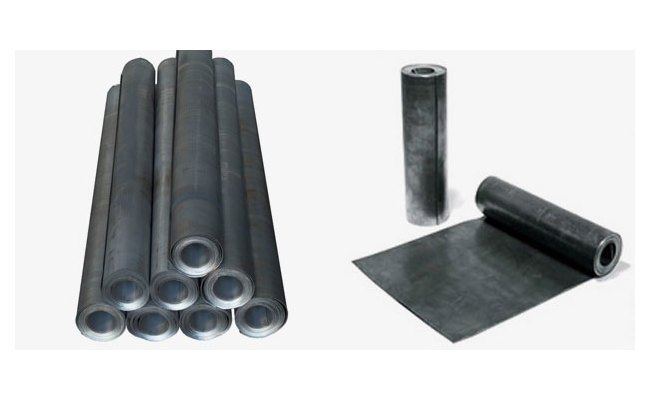

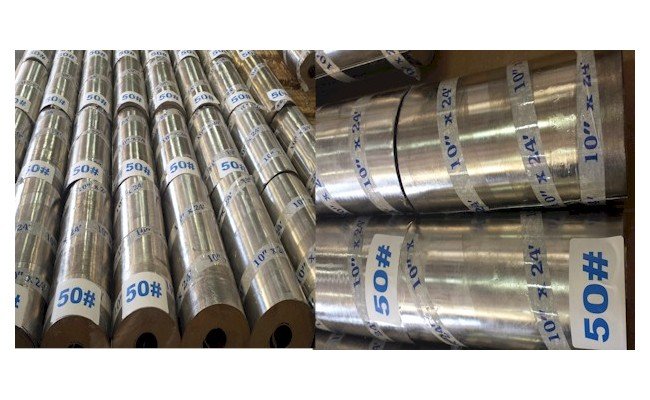

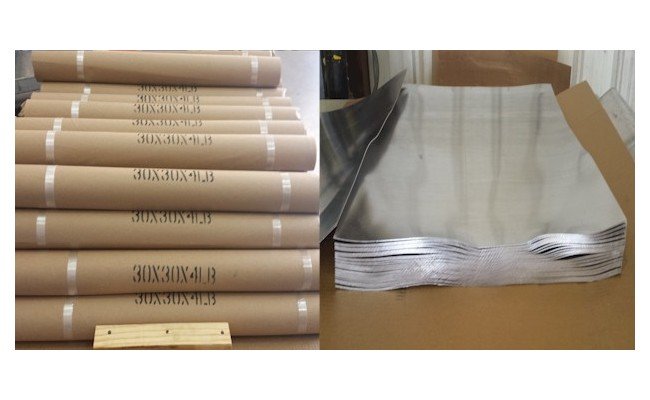

Consistent and high-density, manufactured from pure lead conforming to ASTM B-29, B-749 and Federal QQ-L-201F, QQ-L-171EResistant to corrosion from the atmosphere, salt water and most natural chemicalsSuperior in shielding rooms from radiation against x-rays and gamma radiationHigh "limpness" (low stiffness) and high internal damping capacity allows for excellent blocking of sound and mechanical vibrationAvailable in rolled or sheet form. Smaller sizes are shipped rolled to ensure cost-effective freightCustom sizes and Thickness availableLead buttons or discs to cover screw or nail holes available upon requestWith over 70 tons of sheet lead available in stock, MarShield provides quick turnaround time on stocked sheet lead orders - most can be shipped same dayCustom expert installation services available
Note Note
Custom Thickness available on requestSince sheet lead has very little inherent structural strength, most applications require additional structural support of the sheet lead, or lamination to provide a more rigid building material.
Ordering Ordering
When preparing to order, please have the following requirements available:Sheet sizeThicknessQuantity
Specifications Approximate Weight
120 lb/ft²
Specifications Industry Standards And Certifications
American Society for Testing and Materials (ASTM) B-29 | American Society for Testing and Materials (ASTM) B-749 | Federal QQ-L-171E | Federal QQ-L-201F
Specifications Standard Thickness
2.00 in | 50.8 mm
Specifications Standard Thickness Fractions
2 in
