High-Efficiency 53 kW Blower Purge Desiccant Air Dryer
High-Efficiency 53 kW Blower Purge Desiccant Air Dryer
SKU:DES-d93fd8
Reliable 53 kW Blower Purge Desiccant Air Dryer for efficient compressed air treatment. ISO 8573.1 Class 2 dew point guaranteed.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
High-Efficiency 53 kW Blower Purge Desiccant Air Dryer
$18,999.99
Quantity: 1
Claim Your Seller Account
High-Efficiency 53 kW Blower Purge Desiccant Air Dryer
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

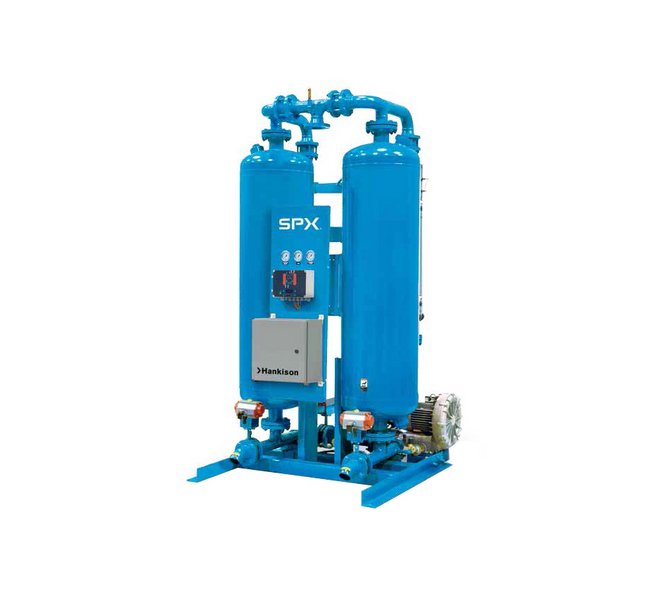

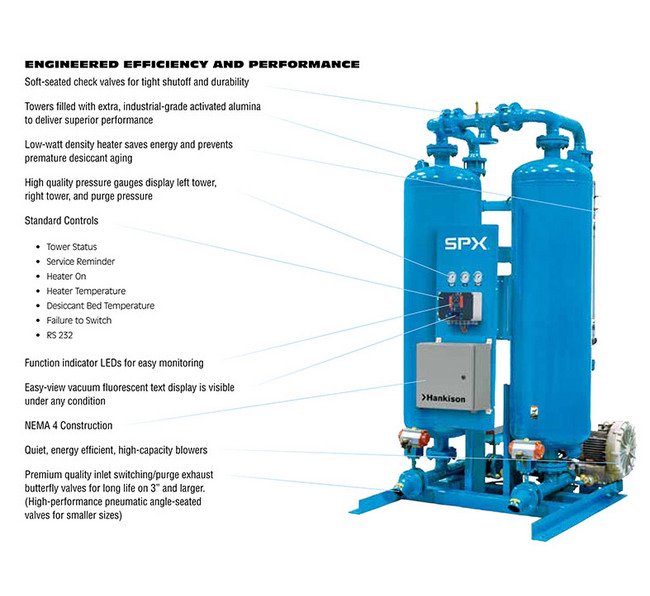

The High-Efficiency 53 kW Blower Purge Desiccant Air Dryer from the HBP Series by Hankison® offers a reliable solution for compressed air treatment needs, ensuring ISO 8573.1 Class 2 dew point performance. Engineered for 100% efficiency, this dryer features a low-watt density heater, soft-seated check valves, and premium quality inlet switching/purge exhaust butterfly valves. With a focus on energy savings and performance, this dryer guarantees supply-side efficiency and reduced air system operating costs. Hankison® continues to uphold its legacy of providing top-tier compressed air treatment solutions.
Product Specifications
Additional Information

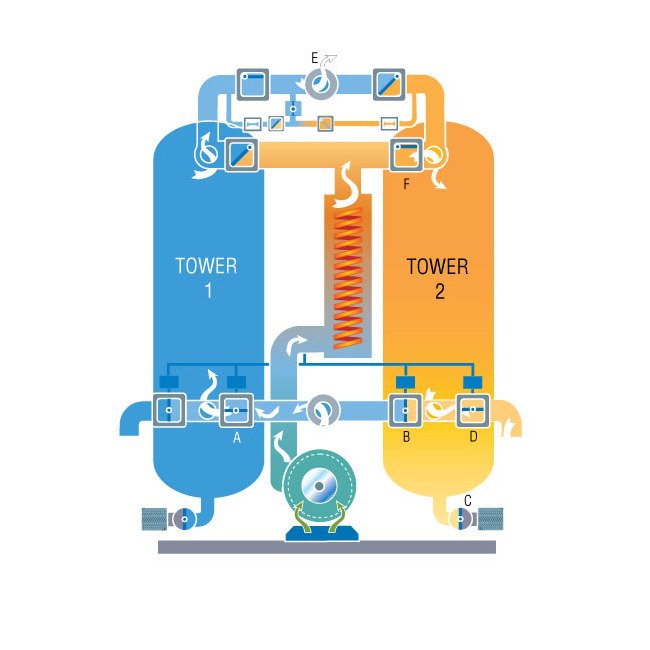

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

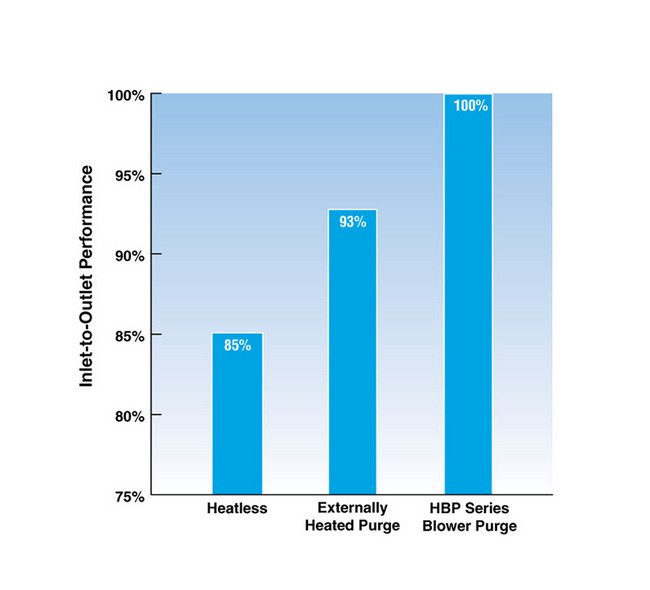

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
117 in
Engineering Data Height
121 in
Engineering Data Width
97 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
6 in
Specifications Outlet Connection Size
6 in
