High-Efficiency Chassis Mount Control Transformers

High-Efficiency Chassis Mount Control Transformers

POW-9b33dd

Reliable Chassis Mount Control Transformers for electronic, electromagnetic, and electrical applications. Hi-pot tested and versatile connections.

$79.99
$79.99
Sale

Initiate Order

High-Efficiency Chassis Mount Control Transformers

High-Efficiency Chassis Mount Control Transformers

$79.99

Quantity: 1

Claim Your Seller Account

High-Efficiency Chassis Mount Control Transformers

High-Efficiency Chassis Mount Control Transformers

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

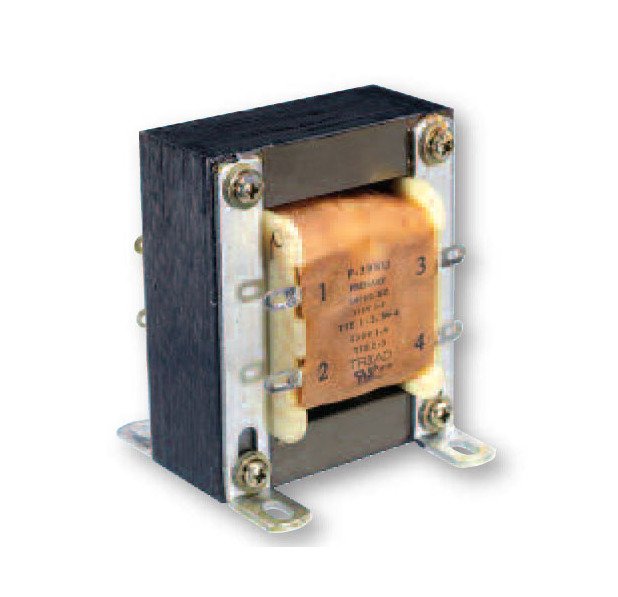

Our Chassis Mount Power Control Transformers provide reliable secondary voltages essential for electronic, electromagnetic, and electrical control applications. Ideal for relays, solenoids, motors, pumps, and more. Hi-pot tested for safety, with versatile connections for expanded voltage ranges. Solder lug termination ensures secure connections.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
U
Specifications Connections
Lugs

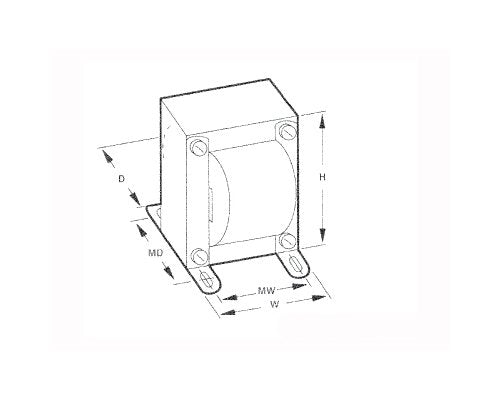

Specifications Depth D
3 1/2 in
Specifications Electrical Rating
144 V·A
Specifications Height H
4 3/4 in
Specifications Mounting Depth
2 7/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
24.0 V at 6.0 A
Specifications Secondary Voltage In Series Ac
48.0 V at 3.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.90 lb
Specifications Width W
3 1/8 in
Technical Notes Technical Notes

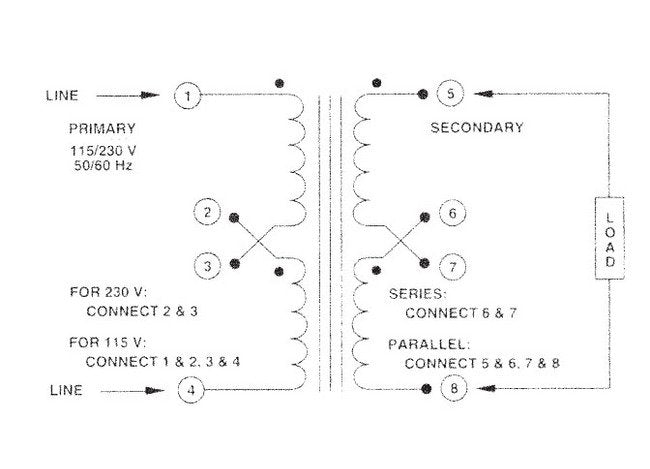

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
