Triad Magnetics →

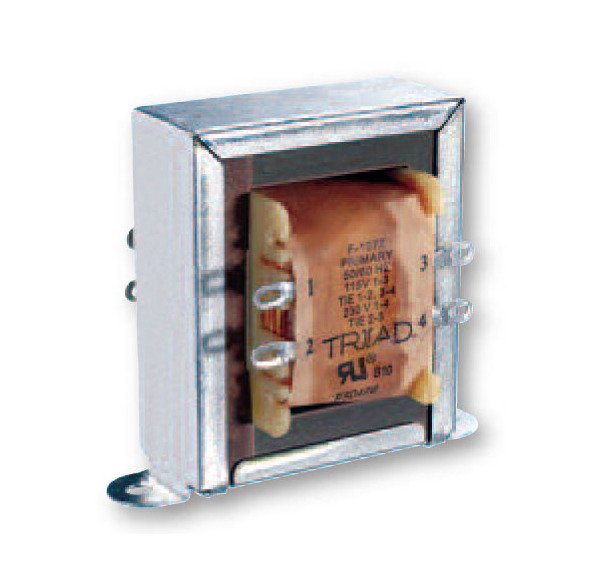

High-Efficiency Chassis Mount Control Transformers

High-Efficiency Chassis Mount Control Transformers

POW-ad1d65

Enhance electronic and electrical control systems with High-Efficiency Control Transformers for reliable performance and expanded voltage ranges.

$49.99
$49.99
Sale

Initiate Order

High-Efficiency Chassis Mount Control Transformers

High-Efficiency Chassis Mount Control Transformers

$49.99

Quantity: 1

Claim Your Seller Account

High-Efficiency Chassis Mount Control Transformers

High-Efficiency Chassis Mount Control Transformers

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your electronic, electromagnetic, and electrical control systems with our High-Efficiency Chassis Mount Control Transformers. Designed for optimal performance, these transformers feature primary AC voltages of 115V and 230V, secondary voltages of 24.0V at 0.5A in parallel, and a compact Z case type for versatile mounting. Tested at 1,500 VRMS, our transformers meet stringent quality standards and can be connected in series or parallel for expanded voltage ranges. Ideal for relays, solenoids, motors, heating elements, and more.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
Z
Specifications Connections
Lugs

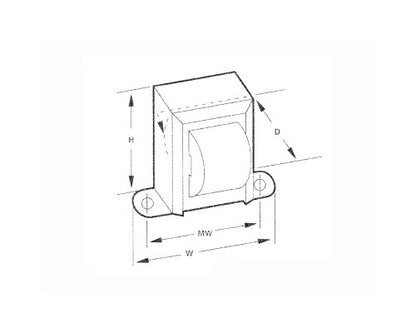

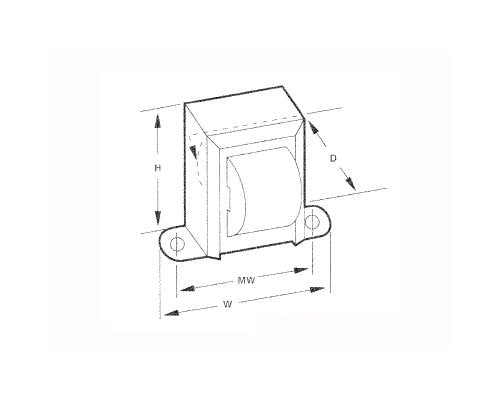

Specifications Depth D
1 3/4 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
24.0 V at 0.5 A
Specifications Secondary Voltage In Series Ac
48.0 V at 0.25 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
0.70 lb
Specifications Width W
2 7/8 in
Technical Notes Technical Notes

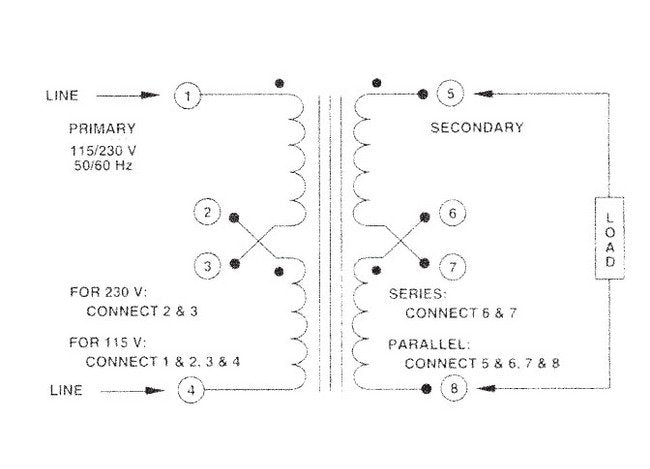

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
