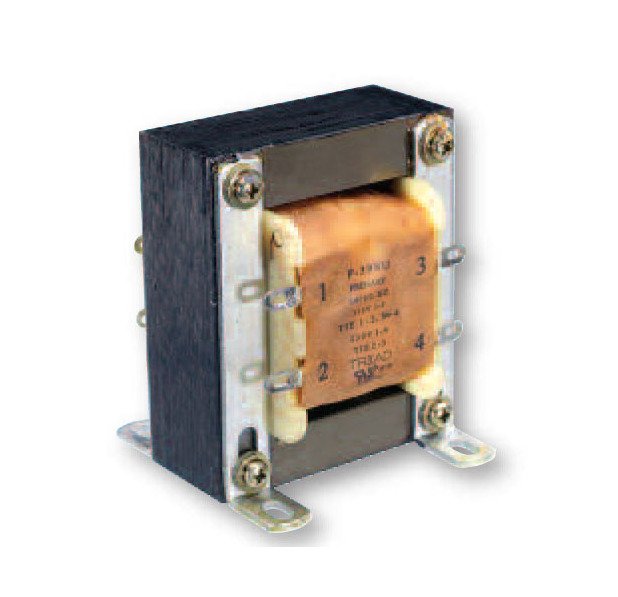

High-Efficiency Chassis Mount Control Transformers
High-Efficiency Chassis Mount Control Transformers
SKU:POW-21caa4
Enhance your power control with precision Chassis Mount Transformers for versatile electronic applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Efficiency Chassis Mount Control Transformers
$89.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Chassis Mount Control Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience optimal performance with our Chassis Mount Power Control Transformers. Designed for electronic, electro-magnetic, and electrical control applications, these transformers provide precise secondary voltages for various industrial uses. With primary AC voltage options, center tap contact type, and multiple mounting features, these transformers ensure reliable power distribution. Hi-pot tested for safety and flexibility, they can be connected in series or parallel. From relays to low voltage lamps, these transformers cater to a wide range of applications while meeting strict industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps

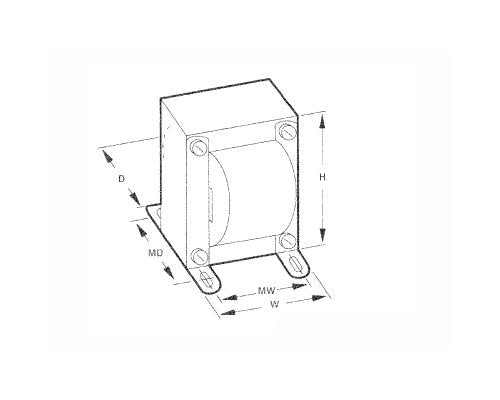

Specifications Case Type
U
Specifications Connections
Lugs
Specifications Depth D
3 1/2 in
Specifications Electrical Rating
144 V·A
Specifications Height H
4 3/4 in
Specifications Mounting Depth
2 7/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
12.0 V at 12.0 A
Specifications Secondary Voltage In Series Ac
24.0 V at 6.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.90 lb
Specifications Width W
3 1/8 in
Technical Notes Technical Notes

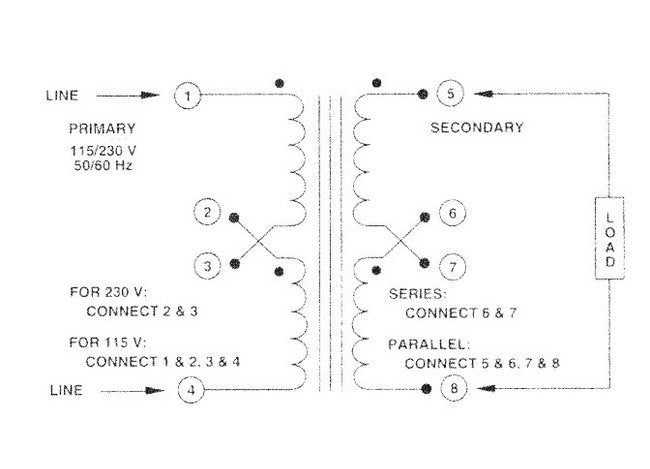

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
