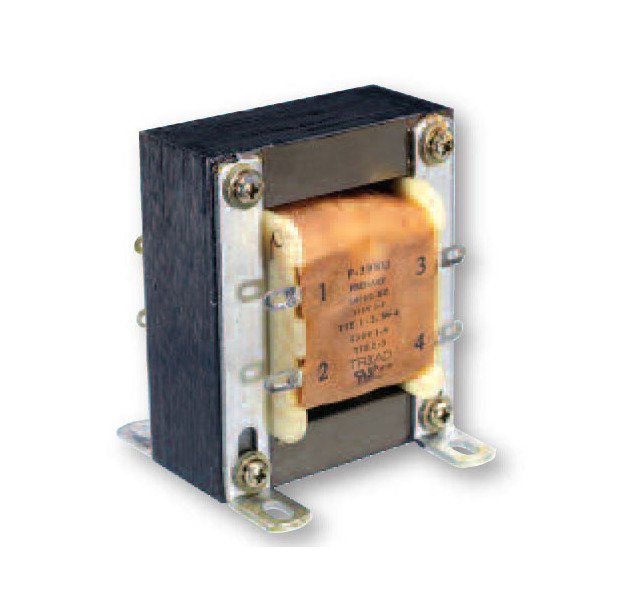

High-Efficiency Chassis Mount Power Control Transformers
High-Efficiency Chassis Mount Power Control Transformers
SKU:POW-d787d7
Enhance control systems with high-efficiency transformers for reliable performance in industrial environments.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High-Efficiency Chassis Mount Power Control Transformers
$89.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Chassis Mount Power Control Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electrical control systems with our high-efficiency Chassis Mount Power Control Transformers. Designed to supply reliable secondary voltages for various electronic and electromagnetic applications, these transformers feature primary AC voltage options of 115V/230V, center tap contact type, and parallel/series secondary voltage configurations for enhanced flexibility. With a durable U-shaped case, hi-pot testing up to 1,500 VRMS, and solder lug terminations, our transformers ensure safe and efficient operations. Ideal for relays, solenoids, motors, pumps, heating elements, and more, they offer a robust solution for demanding industrial and institutional environments.
Product Specifications
Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
U
Specifications Connections
Lugs

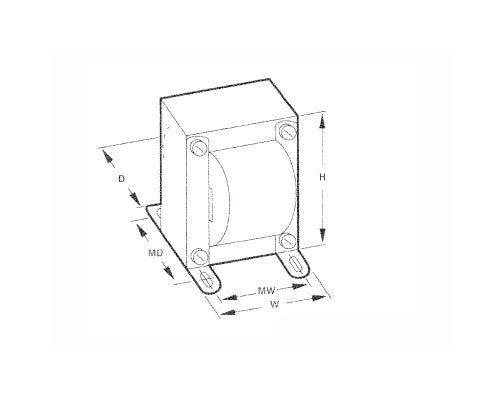

Specifications Depth D
3 7/8 in
Specifications Electrical Rating
192 V·A
Specifications Height H
4 3/16 in
Specifications Mounting Depth
3 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 3/4 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
24.0 V at 8.0 A
Specifications Secondary Voltage In Series Ac
48.0 V at 4.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
6.1 lb
Specifications Width W
3 7/16 in
Technical Notes Technical Notes

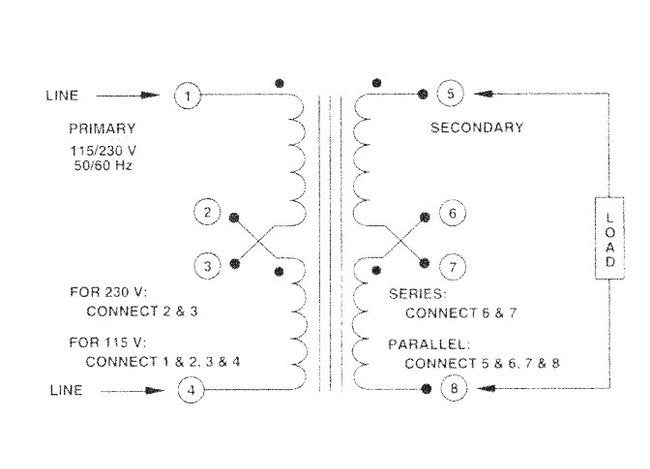

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
