High-Efficiency Chassis Mount Power Control Transformers

High-Efficiency Chassis Mount Power Control Transformers

POW-655a54

Reliable Chassis Mount Power Control Transformers for diverse electronic, electromagnetic, and electrical applications. Primary AC voltage options, versatile secondary voltages, and compact design for seamless integration.

$89.99
$89.99
Sale

Initiate Order

High-Efficiency Chassis Mount Power Control Transformers

High-Efficiency Chassis Mount Power Control Transformers

$89.99

Quantity: 1

Claim Your Seller Account

High-Efficiency Chassis Mount Power Control Transformers

High-Efficiency Chassis Mount Power Control Transformers

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

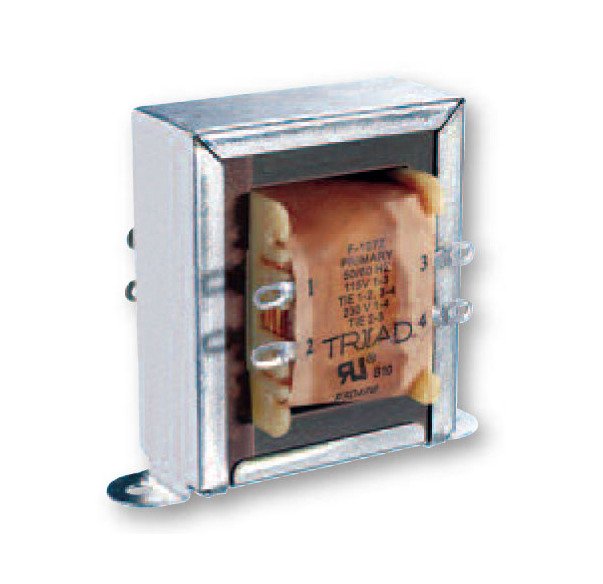

Our Chassis Mount Power Control Transformers from Triad provide reliable secondary voltages essential for a wide range of electronic, electromagnetic, and electrical control applications. Designed for seamless integration with relays, solenoids, motors, pumps, and more, these transformers feature primary AC voltage options of 115V or 230V, with a center tap transformer contact type. With hi-pot testing at 1,500 VRMS, the versatile secondary voltages of 12.0V at 1.0A and 6.0V at 2.0A can be connected in series or parallel for expanded usage. The compact design, with dimensions of 2 3/8" x 2 7/8" x 1 3/4", ensures easy installation and compatibility with various control systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications Applications
RelaysSolenoidsSmall MotorsSpeed ChangersPumpsHeating ElementsControl Valves for Fluids and GasesFans and BlowersElectronic TubesAutomatic Assembly EquipmentRecording DevicesElevatorsDoor OpenersLow Voltage Lamps
Specifications Case Type
Z
Specifications Connections
Lugs

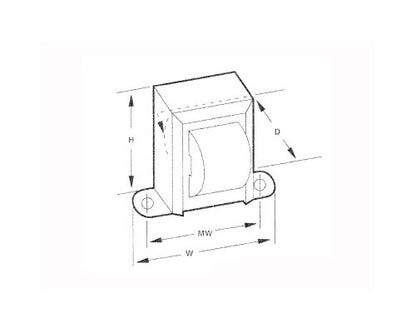

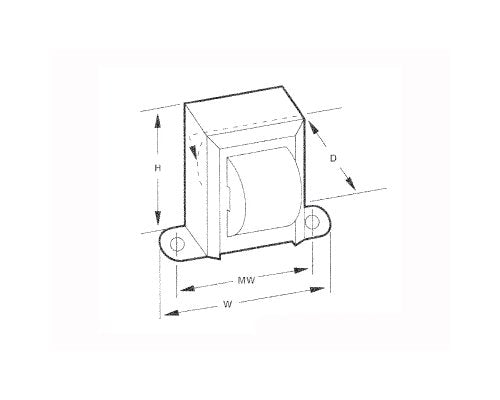

Specifications Depth D
1 3/4 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Alternating Current Ac Voltage
115 V | 230 V
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Secondary Voltage In Parallel Ac
6.0 V at 2.0 A
Specifications Secondary Voltage In Series Ac
12.0 V at 1.0 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
1.00 lb
Specifications Width W
2 7/8 in
Technical Notes Technical Notes

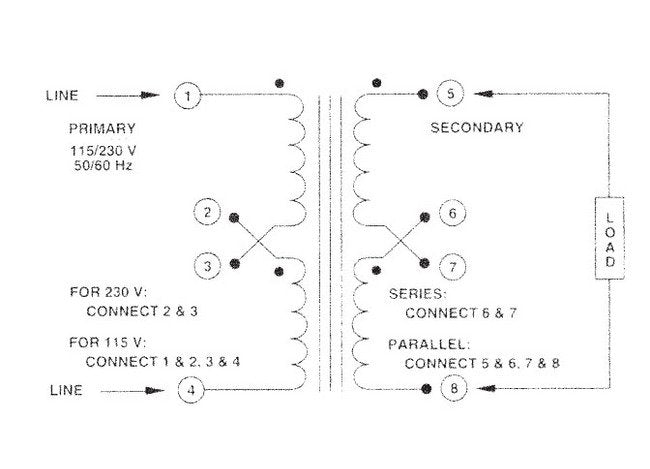

Hi-pot tested at 1,500 VRMS.Secondaries may be connected in series or parallel for expanded voltage and current ranges. See Control Transformer Connections diagram.Transformer termination is solder lug.
