High-Efficiency Chassis Mount Power Transformers
High-Efficiency Chassis Mount Power Transformers
SKU:POW-1b36f6
Experience unparalleled safety and efficiency with our Chassis Mount Quick-Connect Power Transformers designed to meet stringent U.S. and International standards.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High-Efficiency Chassis Mount Power Transformers
$79.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Chassis Mount Power Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

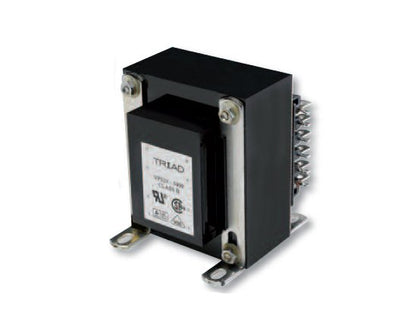

The Chassis Mount Quick-Connect World Series™ Power Transformers are meticulously engineered to adhere to a spectrum of U.S. and International standards, including CSA, IEC, TUV, and UL requirements. Featuring a dual bobbin design encased in an insulating shroud using UL approved high-temperature materials, these transformers eliminate the necessity for electrostatic shielding due to minimal capacitance between coils in the dual bobbin configuration. With both primary and secondary coils electrically isolated from each other and the core, these transformers ensure optimal safety and performance. Ranging from 25 VA to 175 VA, these transformers boast 'quick connect' terminations for convenient installation.
Product Specifications
Specifications Depth D
3 1/6 in
Specifications Dimension A
2 7/8 in
Specifications Dimension B
1 1/2 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
28.0 V at 4.6 A
Specifications Secondary Series
56.0 V CT at 2.3 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.20 lb
Specifications Width W
2 7/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
