High-Efficiency Chassis Mount Power Transformers
High-Efficiency Chassis Mount Power Transformers
SKU:POW-541e18
Meet U.S. and International standards with our reliable Power Transformers; available in multiple sizes with quick-connect terminations.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High-Efficiency Chassis Mount Power Transformers
$59.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Chassis Mount Power Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

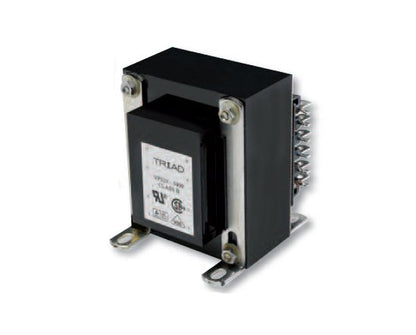

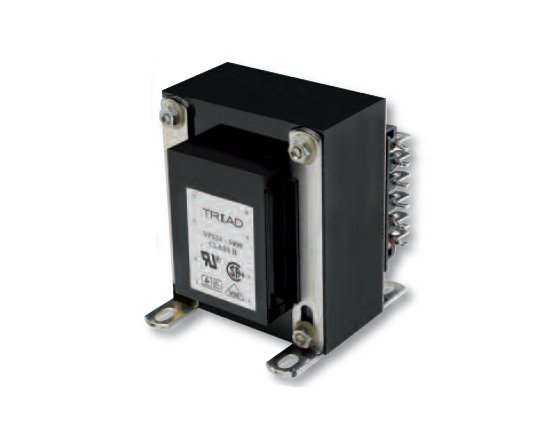

The Chassis Mount Quick-Connect World Series™ Power Transformers are meticulously engineered to meet stringent U.S. and International standards such as CSA, IEC, TUV, and UL requirements. Designed with a dual bobbin configuration encased in high-temperature, UL-approved material, these transformers eliminate the need for electrostatic shielding due to low coil capacitance. Featuring electrical isolation between primary and secondary coils and the core, these transformers ensure maximum safety. Available in various sizes from 25 VA to 175 VA, they come with convenient 'quick connect' terminations for effortless installation.

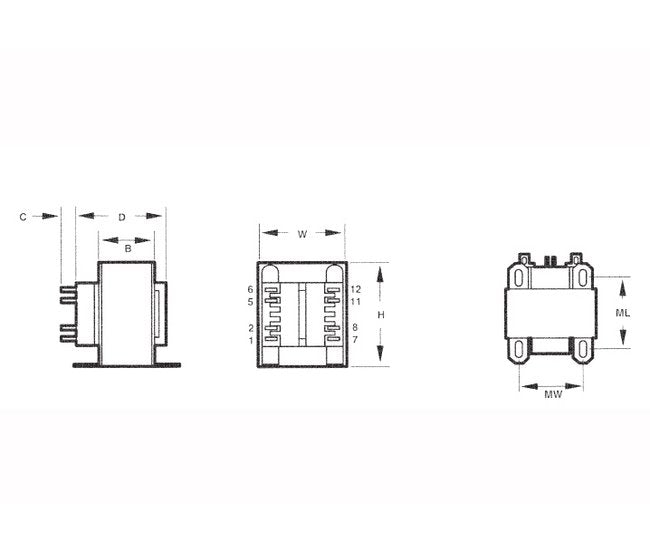

Product Specifications
Specifications Depth D
2 11/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
130 V·A
Specifications Height H
3 3/8 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
18.0 V at 7.2 A
Specifications Secondary Series
36.0 V CT at 3.6 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.10 lb
Specifications Width W
2 13/16 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
