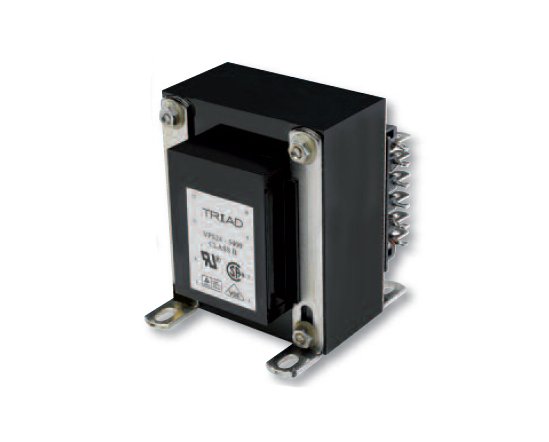

Upgrade your power supply systems with our Chassis Mount Quick-Connect World Series™ Power Transformers. These transformers are meticulously designed to meet stringent U.S. and International standards, including CSA, IEC, TUV, and UL requirements. Constructed with a dual bobbin design encased in UL-approved high-temperature material, these transformers ensure optimal performance and safety. The innovative design eliminates the need for electrostatic shielding, offering enhanced efficiency. With sizes ranging from 25 VA to 175 VA, dual electrically isolated primary and secondary coils, and quick-connect terminations, these transformers are ideal for a wide range of applications.

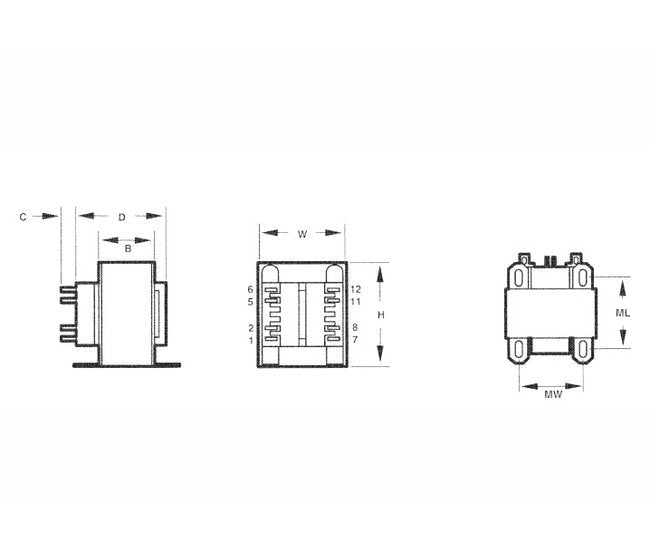

Product Specifications
Specifications Depth D
2 13/16 in
Specifications Dimension B
1 5/8 in
Specifications Dimension C
3/8 in
Specifications Dimension T
1/4 in
Specifications Electrical Rating
175 V·A
Specifications Height H
3 3/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Length
2 1/2 in
Specifications Mounting Width
2 1/2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Parallel
115.0 V at 1.52 A
Specifications Secondary Series
230.0 V CT at 0.76 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.50 lb
Specifications Width W
3 1/8 in
Technical Notes 0
Hi-pot tested at 4,000 VRMS.Both primary and secondary coils may be connected as either series or parallel, but both must be used simultaneously.
