The Chassis Mount Leaded World Series™ Power Transformers are expertly engineered to meet stringent international safety agency standards. Featuring European style split bobbins that reduce interwinding capacitance and eliminate the need for electrostatic shielding, these transformers offer unrivaled reliability. With electrical ratings up to 25 V·A, primary windings rated at 115 V / 230 V 50/60 Hz, and 3,500 V isolation between primary and secondary windings, these transformers provide exceptional performance and safety. Designed with a 6 mm creepage distance primary to secondary, they ensure efficient power transmission, making them ideal for a wide range of applications.
Product Specifications
Note 0

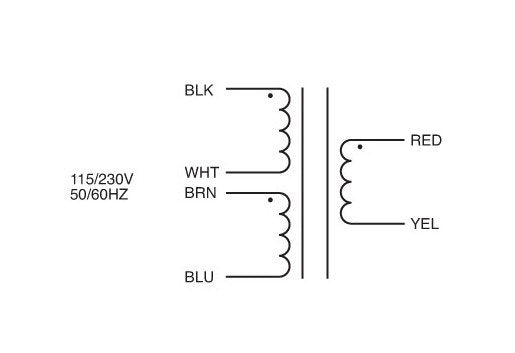

Primary and secondary windings are designed to be connected in Series or Parallel. Windings are not intended to be used independentlyClass 2/3 UL File: E65390, others TUV only
Specifications Case Type
X
Specifications Center Tap
N
Specifications Creepage Distance
6 mm
Specifications Depth D
2 1/4 in
Specifications Electrical Rating
25 V·A
Specifications Height H
2 9/16 in
Specifications Mounting Width
3 9/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Series Connected
25.2 V | 1.984 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
2.30 lb
Specifications Width W
4 in
Technical Notes 0
Primary and secondary windings are designed to be connected in series or parallel. Windings are not intended to be used independently.
