High-Efficiency CHE Series Metallized Film Capacitors
High-Efficiency CHE Series Metallized Film Capacitors
SKU:MET-2d1c27
Efficient CHE Series Capacitors: Up to 600V, 0.2-2.0µF Range, Compact & Reliable. Optimal Cooling. Perfect for Demanding Environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High-Efficiency CHE Series Metallized Film Capacitors
$39.99
Quantity: 1
Claim Your Seller Account
High-Efficiency CHE Series Metallized Film Capacitors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

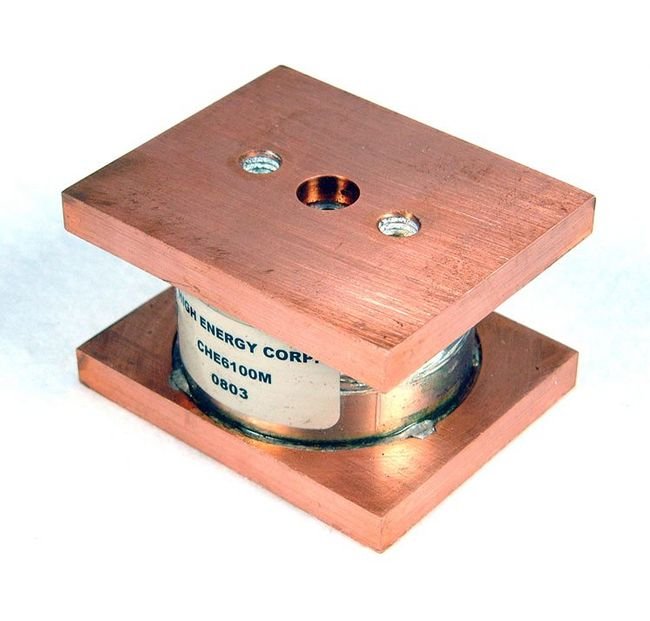

The High-Efficiency CHE Series Metallized Film Capacitors offer exceptional performance with a capacitance range of 0.2 to 2.0 µF and a VMAX (RMS) of 600 V. Designed for reliability, these capacitors feature a conduction-cooled design, ensuring optimal cooling through bus bars. With a compact size of 2 3/4 x 2 1/4 x 2 5/8 inches and a weight of 0.5 kg, these capacitors are perfect for various applications. Operating temperature up to +90 ºC, making them suitable for demanding environments. Compliance with industry standards ensures quality and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
1.0 µF
Specifications Capacitance Range
0.2 to 2.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

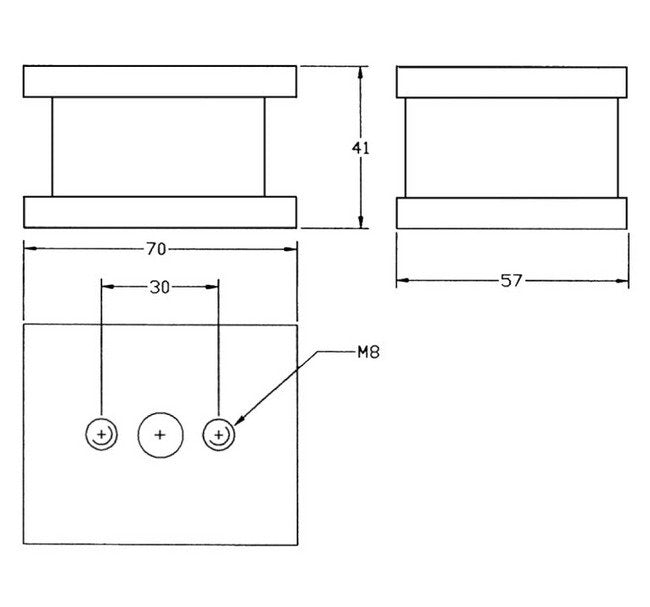

Specifications Dimensions
2 3/4 x 2 1/4 x 2 5/8 in | 70 x 57 x 41 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
224 kHz
Specifications Fl
177 kHz
Specifications Fmax
700 kHz
Specifications Imax Rms
750 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
400 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.5 kg | 1.1 lb
