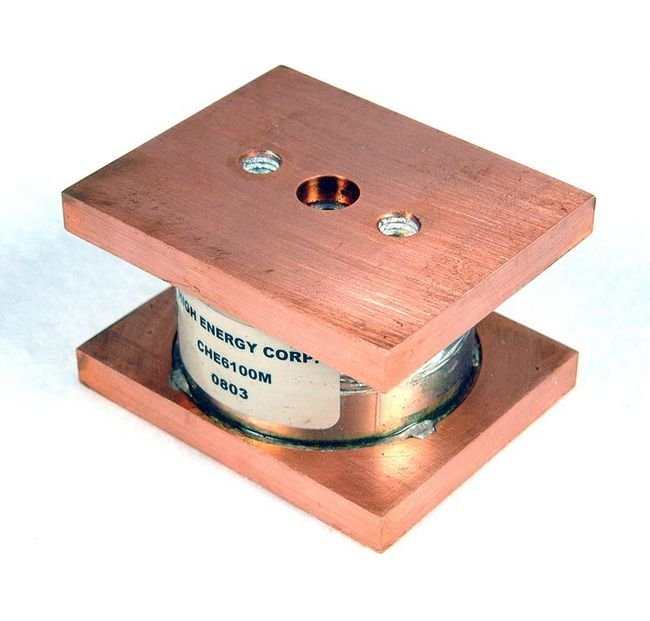

High-Efficiency CHE Series Metallized Film Capacitors
High-Efficiency CHE Series Metallized Film Capacitors
SKU:MET-0cf811
Experience high efficiency and reliability with our CHE Series Metallized Film Capacitors. Perfect for high-power applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High-Efficiency CHE Series Metallized Film Capacitors
$59.99
Quantity: 1
Claim Your Seller Account
High-Efficiency CHE Series Metallized Film Capacitors
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the demands of high-power applications with our CHE Series Metallized Film Capacitors. Featuring a capacitance range of 0.2 to 2.0 µF and a working voltage of up to 700 VRMS, these capacitors deliver reliable performance up to 400 kVA max power and 800 ARMS max current. Designed for conduction cooling and stackable in series and parallel configurations, these capacitors ensure efficient operation with low dissipation factor and minimal stray inductance.
Product Specifications
Specifications Cap
0.2 µF
Specifications Capacitance Range
0.2 to 2.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

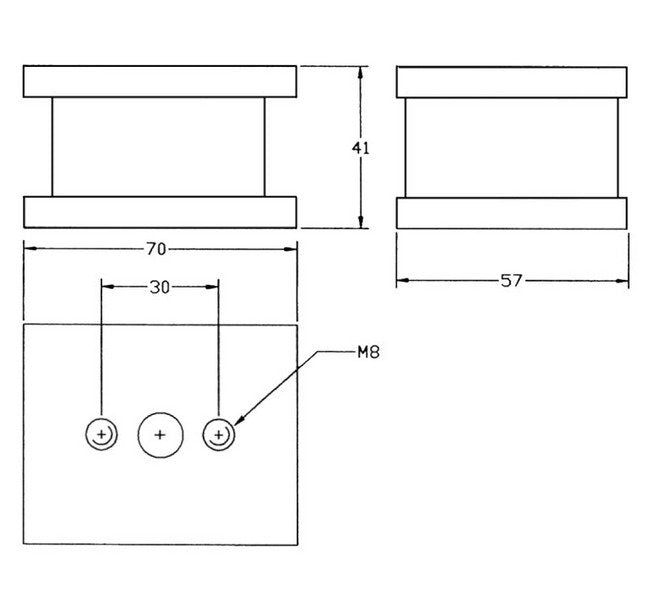

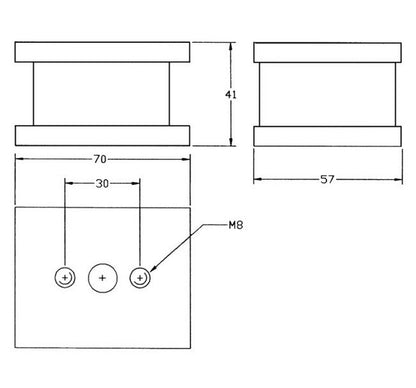

Specifications Dimensions
2 3/4 x 2 1/4 x 2 5/8 in | 70 x 57 x 41 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
740 kHz
Specifications Fl
527 kHz
Specifications Fmax
700 kHz
Specifications Imax Rms
550 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
325 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
