High Efficiency Class-2 Power Control Transformers
High Efficiency Class-2 Power Control Transformers
SKU:POW-580095
Upgrade with efficiency and safety - High-efficiency Class-2 Power Control Transformers for reliable power supply in various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Efficiency Class-2 Power Control Transformers
$89.99
Quantity: 1
Claim Your Seller Account
High Efficiency Class-2 Power Control Transformers
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

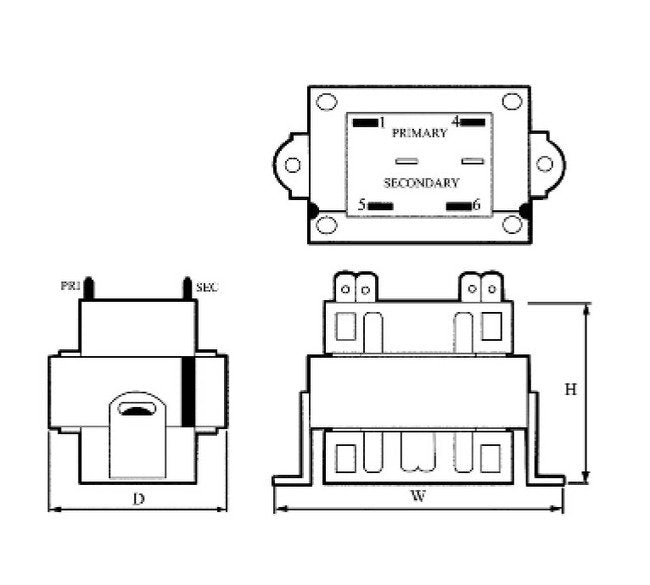

Upgrade your power control systems with our high-efficiency Class-2 Power Control Transformers. These transformers feature tamper-resistant shrouds for enhanced safety and steel brackets for easy mounting, ensuring a secure and reliable power supply. With primary input voltages of 208 V or 240 V, secondary output voltage of 24 V, and a maximum power of 50 VA, these transformers provide optimal performance for various applications. The compact design, with dimensions of H 71.5 mm x W 95.0 mm x D 57 mm, and convenient lug connections make installation a breeze. Ideal for industrial, commercial, and institutional settings, these transformers meet stringent quality standards for dependable operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Connections
Lugs
Specifications Depth D
57 mm
Specifications Height H
71.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
208 V | 240 V
Specifications Secondary Output Voltage
24 V
Specifications Weight
2.00 lb
Specifications Width W
95.0 mm
