High-Efficiency Class-2 Power Control Transformers
High-Efficiency Class-2 Power Control Transformers
SKU:POW-e9b28b
Enhance power control systems with safe, high-efficiency transformers - 208V/240V primary input, 12V secondary output, and 50 VA power.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High-Efficiency Class-2 Power Control Transformers
$79.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Class-2 Power Control Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

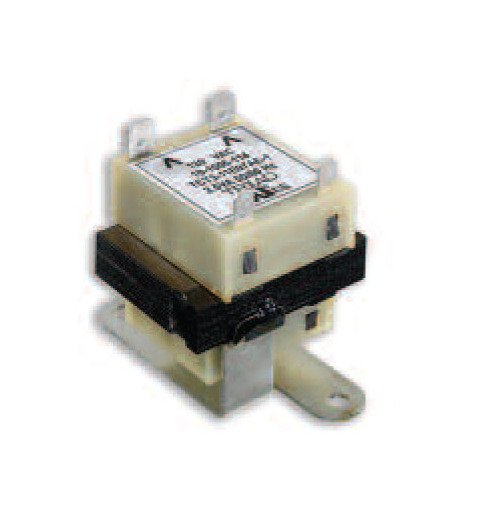

Upgrade your power control systems with our Class-2 Power Control Transformers featuring tamper-resistant shrouds for enhanced safety and a welded steel bracket for easy mounting. With primary input voltages of 208V and 240V, secondary output voltage of 12V, and a maximum power of 50 VA, these transformers provide reliable performance. Designed with lugs for secure connections, compact dimensions, and compliant with industry standards, they are ideal for both consumer and institutional applications.

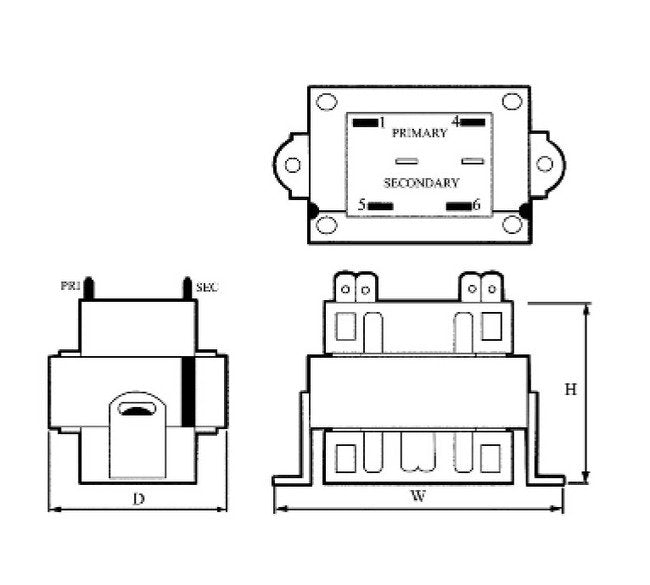

Product Specifications
Specifications Connections
Lugs
Specifications Depth D
57 mm
Specifications Height H
71.5 mm
Specifications Input Frequency
50 Hz | 60 Hz
Specifications Maximum Power
50 V·A
Specifications Mounting Dimensions
79.38 mm
Specifications Primary Input Voltage
208 V | 240 V
Specifications Secondary Output Voltage
12 V
Specifications Weight
2.00 lb
Specifications Width W
95.0 mm
