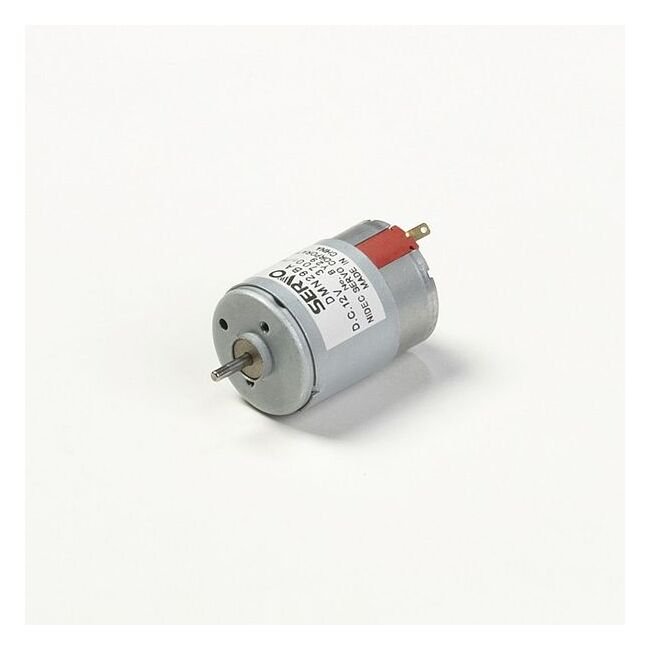

High-Efficiency DMN29 50G Series DC Brush Motor
High-Efficiency DMN29 50G Series DC Brush Motor
SKU:PER-ecbc70
High-performance DMN29 50G DC Brush Motor for continuous operation with optimized design for durability and efficiency.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High-Efficiency DMN29 50G Series DC Brush Motor
$99.99
Quantity: 1
Claim Your Seller Account
High-Efficiency DMN29 50G Series DC Brush Motor
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DMN29 50G Series DC Brush Motor is designed for continuous operation, offering durability and high performance. With optimized brush design, this motor boasts a long lifespan of over 1 million cycles. It features high heat dissipation for increased output, robust construction for high radial load capacity, and low noise operation. Additionally, the motor comes with a variety of gear head options and reduction ratios to meet diverse needs, along with the option for a magnetic revolution sensor and noise filter.
Product Specifications
Additional Information 0
DMN29 50G Series DC Brush Motors with Continuous Operation | DMN29 L Series DC Brush Motors with Intermittent Operation (DMN29B) | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Outline
Specifications Diameter
1.969 in | 50 mm
Specifications Gear Ratio
96
Specifications Product Type
DC Brush Motor
Specifications Rated Torque
72.3 oz·in | 0.49 N·m
Specifications Series
DMN29
Specifications Speed
38.5 r/min
Specifications Voltage
12 V
Specifications Weight
230 g | 0.51 lb
