High-Efficiency DP® AEROVA Air Classifier RPM Air Classifier
High-Efficiency DP® AEROVA Air Classifier RPM Air Classifier
SKU:DPA-edecbc
Achieve precise particle classification with the High-Efficiency DP® AEROVA 10600 RPM Air Classifier. Ideal for diverse industrial applications.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
High-Efficiency DP® AEROVA Air Classifier RPM Air Classifier
$6,999.99
Quantity: 1
Claim Your Seller Account
High-Efficiency DP® AEROVA Air Classifier RPM Air Classifier
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

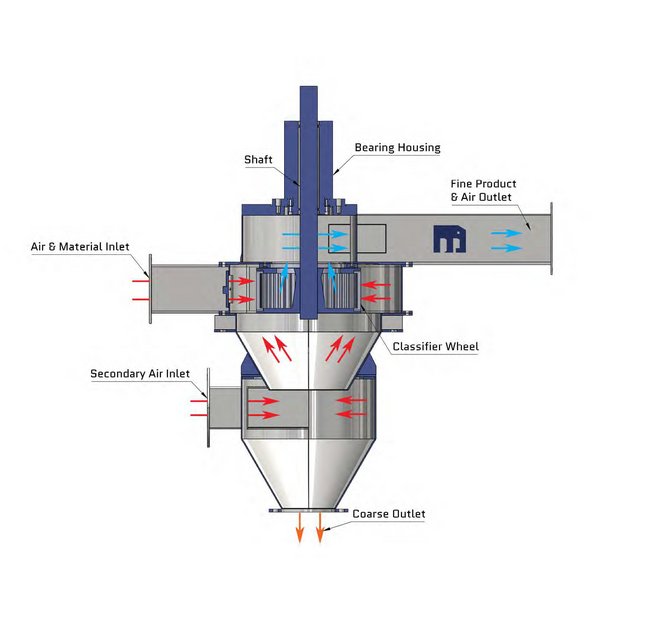

The High-Efficiency DP® AEROVA 10600 Revolutions Per Minute (rpm) Maximum Speed Air Classifier is a top-tier solution for classifying dry materials with precision and efficiency. With a wide throughput range from 5 kgs to 10 tonnes per hour, this forced-vortex unit offers exceptional accuracy in sorting particles ranging from 1 to 150 microns. Its robust construction, adjustable secondary air-wash system, and low power consumption make it ideal for industries like minerals, chemicals, ceramics, and recycling. Operate this air classifier as a standalone unit or integrate it seamlessly within your milling system for optimal results.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
High-efficiency air classifier.Particle size cut-point from 1-150 microns.Precise on-stream control of cut-point by variation of rotor speed and airflow.Low power consumption and Robust construction and build quality for long service life.Adjustable secondary air-wash system for optimisation of classification efficiency.Operates under negative pressure promoting dust-free environment.Can be supplied with a variety of liners and coatings to improve wear resistance.
Note Note
Made in India
Options And Accessories Options And Accessories
Machine Contact and Non-Contact Parts available in Cast Iron, Carbon Steel, 304, 304L, 316, 316L.The internal surfaces of the classifier can be lined with ceramic tiles of various grades.Wearable parts available in hard materials like Forged Alloy Steel, Welded Hard Facing, Hard Alloy Steel Casting, Cast lron.The classifying wheel can also be made of wear resistant materials such as ceramic or silicon carbide.
Specifications Main Drive Motor
2.5 to 3.5 kW
Specifications Maximum Speed
10600 rpm | 1200 m³/h
Specifications Pressure Differential
510 mm/SWG
