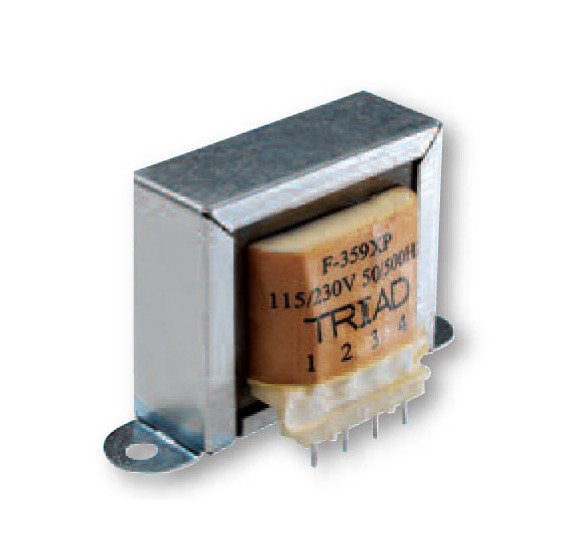

Engineered for superior performance, these Dual Primary, Dual Secondary PC Mount Power Transformers from our selection of Triad transformers meet the demands of PC board and solid-state power supply designs. With both single and dual primary options, offering dual center-tapped secondary configurations, these transformers excel in power, control, and instrumentation applications. Hi-pot tested at 1,500 VRMS, the dual primaries enable global market compatibility.

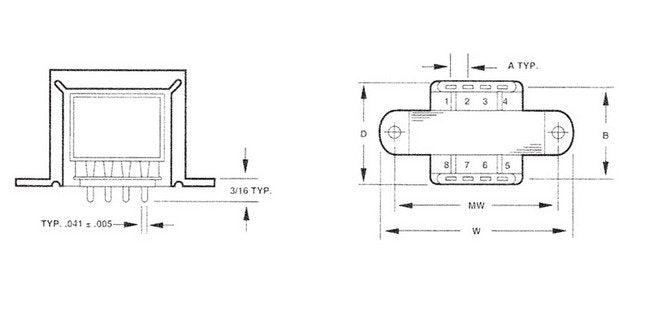

Product Specifications
Specifications Depth D
1 7/16 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
10 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 7/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
115.0 V at 0.088 A
Specifications Secondary Voltage In Series
230.0 V CT at 0.044 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
11.0 oz
Specifications Width W
2 13/16 in
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
