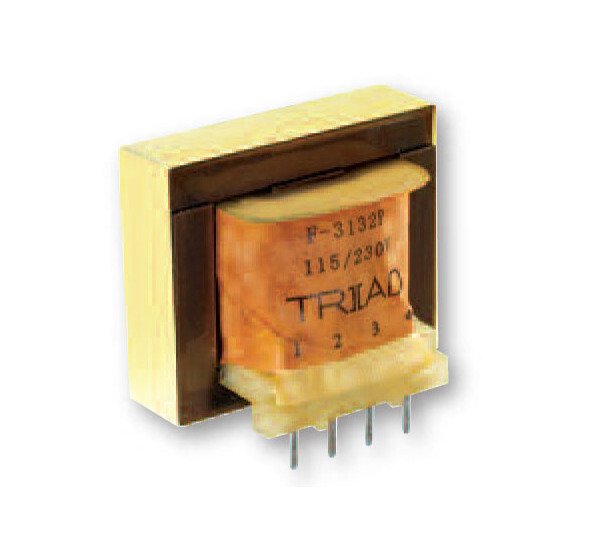

High-Efficiency Dual Primary/Secondary PC Mount Transformers
High-Efficiency Dual Primary/Secondary PC Mount Transformers
SKU:POW-6a6080
Transform your power supply designs with Dual Primary/Secondary Transformers for reliable performance in power and control applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Efficiency Dual Primary/Secondary PC Mount Transformers
$29.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Dual Primary/Secondary PC Mount Transformers
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your power supply designs with our versatile Dual Primary, Dual Center Tapped Secondary Transformers. These transformers offer reliable performance for both power and control applications. With options for single or dual primaries, they are suitable for diverse domestic and international markets. Hi-pot tested at 1,500 VRMS for safety assurance.
Product Specifications
Specifications Depth D
1 1/8 in
Specifications Dimension A
1 3/64 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.100 A
Specifications Secondary Voltage In Series
30.0 V CT at 0.050 A
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.0 oz
Technical Notes Technical Notes
The transformers with dual primaries permit their use in equipment for sale in both foreign and domestic markets.Hi-pot tested at 1,500 VRMS.
