Discover the High Efficiency GE Electric Motor - The Powerhouse for Your Industrial Needs

$1,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

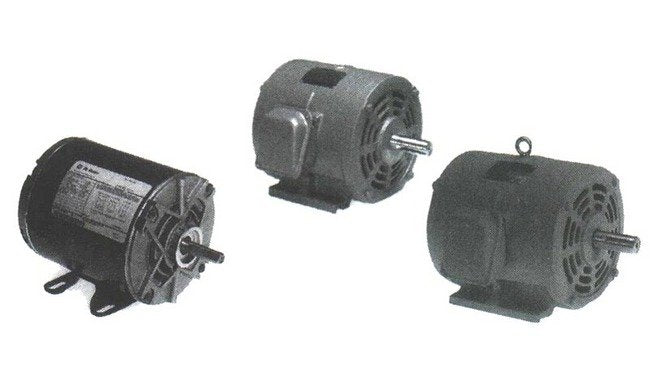

The High Efficiency GE Electric Motor is a powerhouse in the field of electric motors. Manufactured by GE Motors and Controls, this three-phase motor boasts a versatile design with a base-mounted style. Compliant with EPAct efficiency levels, it features a sturdy cast iron frame from 182 to 449 sizes. With voltage options of 230 volts and 460 volts, this motor offers reliability and durability for a wide range of applications. Whether it's Open Dripproof (ODP) or Totally Enclosed Fan Cooled (TEFC), this motor is designed to meet various operational needs. With a service factor of 1.15 and a nominal efficiency of 93, this motor stands out for its performance and robust construction, making it ideal for institutions seeking top-tier electrical equipment.

Product Specifications

Applications 0

Designed for general purpose applications with moderate to high starting torques. Moderate to high starting torques.

Note 0

Data subject to change without notice. Calculated data only. Consult Elitenet

Specifications Base

Ftd

Specifications Category

EPACT/General Purpose

Specifications C Dimension

26.6

Specifications Full Load Ampere Fla Np

90.4 / 45.2 amps

Specifications Manufacturer

GE Motors and Controls

Specifications Motor Code

Specifications Motor Type

Base Mounted

Specifications Multiplier Symbol

G4-7DEZ

Specifications Nema Frame

324T

Specifications Nominal Efficiency

Specifications Normally Stocked

Yes

Specifications Number Of Phase

Three Phase

Specifications Service Factor Sf

1.15

Specifications Style

Dripproof

Specifications Voltage

230 volts | 460 volts

Specifications Weight

518 lbs
