High-Efficiency METFILM Capacitors
High-Efficiency METFILM Capacitors
SKU:MET-0eab76
Enhance power efficiency with High-Efficiency METFILM Capacitors - perfect for demanding environments.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
High-Efficiency METFILM Capacitors
$69.99
Quantity: 1
Claim Your Seller Account
High-Efficiency METFILM Capacitors
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

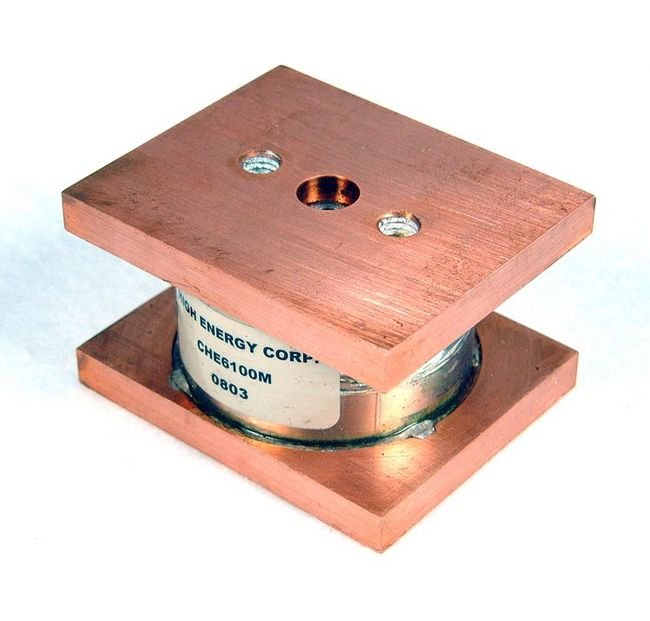

Upgrade your electrical systems with the CHE Series Metallized Film Capacitors. With a capacitance range of 0.2 to 2.0 µF and a working voltage of up to 700 VRMS, these capacitors deliver reliable power handling capabilities. Designed for conduction cooling with compact dimensions of 2 3/4 x 2 1/4 x 2 5/8 in and a weight of 0.5 kg, they ensure efficient operation even in demanding environments. With compliance to strict industry standards and a dissipation factor of only 0.1%, these capacitors offer optimal performance and longevity for your applications.
Product Specifications
Specifications Cap
0.66 µF
Specifications Capacitance Range
0.2 to 2.0 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

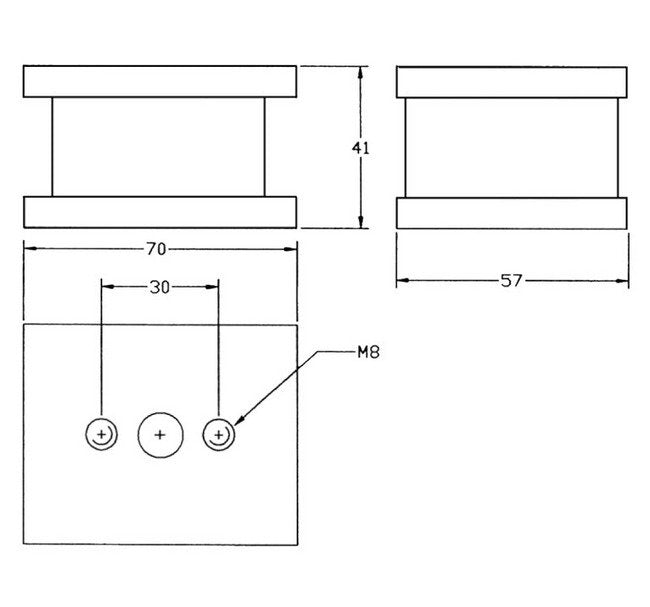

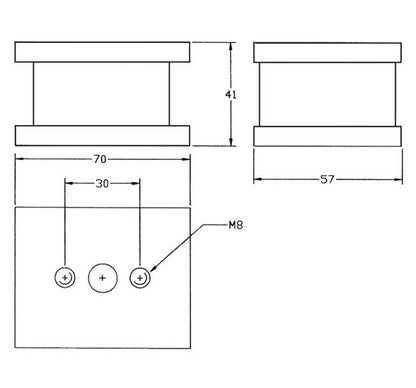

Specifications Dimensions
2 3/4 x 2 1/4 x 2 5/8 in | 70 x 57 x 41 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
224 kHz
Specifications Fl
160 kHz
Specifications Fmax
700 kHz
Specifications Imax Rms
550 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
325 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
