High-Efficiency Multiple Secondary Chassis Mount Power Transformers
High-Efficiency Multiple Secondary Chassis Mount Power Transformers
SKU:POW-8b60ee
Reliable High-Efficiency Power Transformers with Dual Voltage Options & Center Tap Contact
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High-Efficiency Multiple Secondary Chassis Mount Power Transformers
$99.99
Quantity: 1
Claim Your Seller Account
High-Efficiency Multiple Secondary Chassis Mount Power Transformers
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

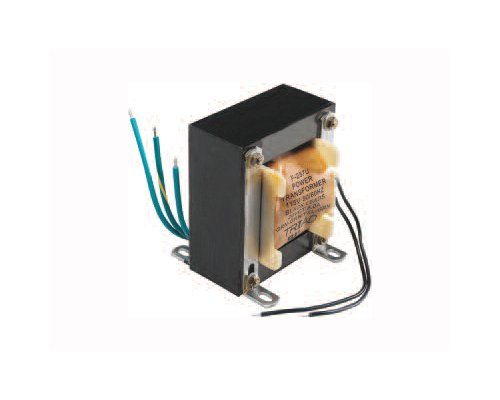

The High-Efficiency Multiple Secondary Chassis Mount Power Transformers are designed for reliable and consistent power supply applications. With secondary voltage options of 15.5 V and 32.0 V, center tap transformer contact type, and a secondary current of 1.000 A for 32.0 V and 2.000 A for 15.5 V, these transformers ensure optimal performance. Meeting primary voltage standards of 115 V, with a dual frequency compatibility of 50 Hz and 60 Hz, they offer a seamless power solution for various settings. The transformers are built with high-quality materials, featuring a compact U-shaped case type, leads connections, and a sturdy build for lasting durability.
Product Specifications

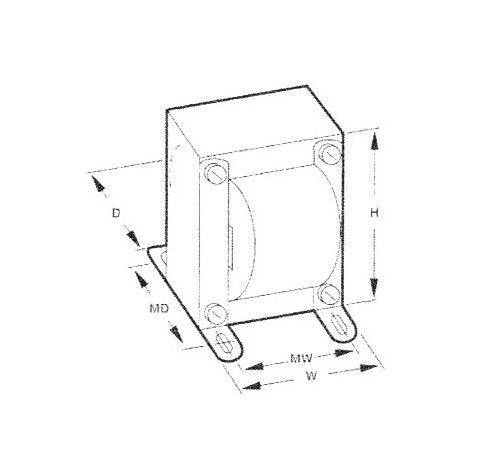

Specifications Case Type
U
Specifications Connections
Leads
Specifications Depth D
2 5/8 in
Specifications Height H
3 3/8 in
Specifications Mounting Depth
2 1/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
1.000 A for 32.0 V | 2.000 A for 15.5 V
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
15.5 V | 32.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
4.00 lb
Specifications Width W
2 13/16 in
