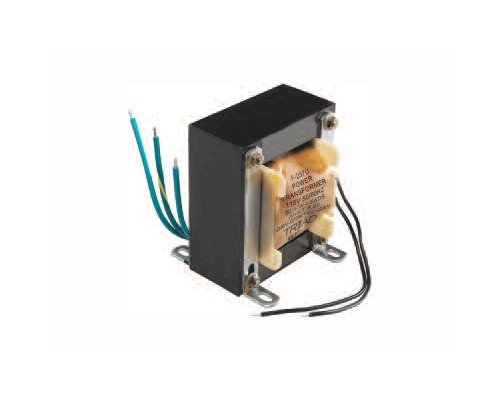

Enhance power distribution efficiency with our Multiple Secondary Chassis Mount Power Transformers. Designed with a Secondary Voltage of 18.0 V and a Secondary Current of 4.000 A, these transformers ensure reliable power conversion. Featuring a sturdy U-shaped Case Type, secure Connections with Lugs, and a robust construction, these transformers are ideal for demanding industrial applications. With compliance to Federal/DoD procurement standards and NIST requirements, rest assured of quality and performance.
Product Specifications
Note Note
Windings may be connected in series to obtain their combined voltage when properly phased. Current will be equal to the current of the lowest winding. Example: Two 6.3 V windings @ 2 A in series would be 12.6 V @ 2 A. Windings may also be connected in parallel to obtain combined current. Example: Two 6.3 V windings @ 2 A in parallel would be 6.3 V @ 4 A.
Specifications Case Type
U
Specifications Connections
Lugs

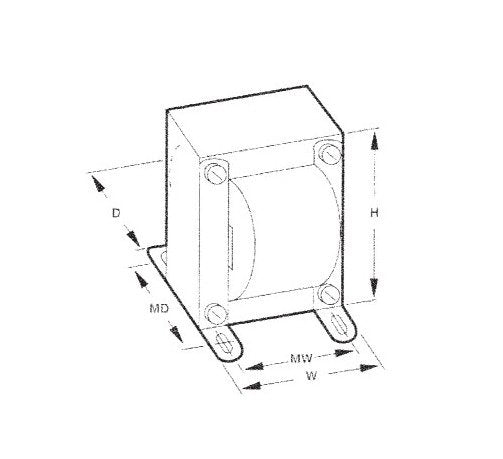

Specifications Depth D
3 1/4 in
Specifications Height H
3 1/2 in
Specifications Mounting Depth
2 1/4 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
3 7/16 in
Specifications Primary Frequency
60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Current
4.000 A
Specifications Secondary Rms Test Voltage
1,500 V
Specifications Secondary Voltage
18.0 V
Specifications Transformer Contact Type
Center Tap
Specifications Weight
5.20 lb
Specifications Width W
4 1/8 in
